Network Diagrams, Post Yours.

Discussion in 'Computer and Technology Discussion' started by MasterChief, Dec 10, 2009.

  1. MasterChief

    MasterChief Addict

    Joined:
    Sep 17, 2009
    Messages:
    743
    Likes Received:
    89
    Location:
    The Internet
    I have finished re doing our home network, the Mac was replaced with a Gaming PC and we all have Netbooks so the shared computer is not used that much now.

    Lets see your network.

    [​IMG]

  2. xzKinGzxBuRnzx

    xzKinGzxBuRnzx The Feature Man

    Joined:
    Aug 9, 2008
    Messages:
    1,875
    Likes Received:
    1,244
    Location:
    Space
    [​IMG]

    The Linksys WRT54G router, i forgot to edit, I have a DGL-4500 dlink. I also don't have a HP netbook, I have a Acer netbook.

  3. Titcher

    Titcher Addict

    Joined:
    Oct 16, 2008
    Messages:
    275
    Likes Received:
    34

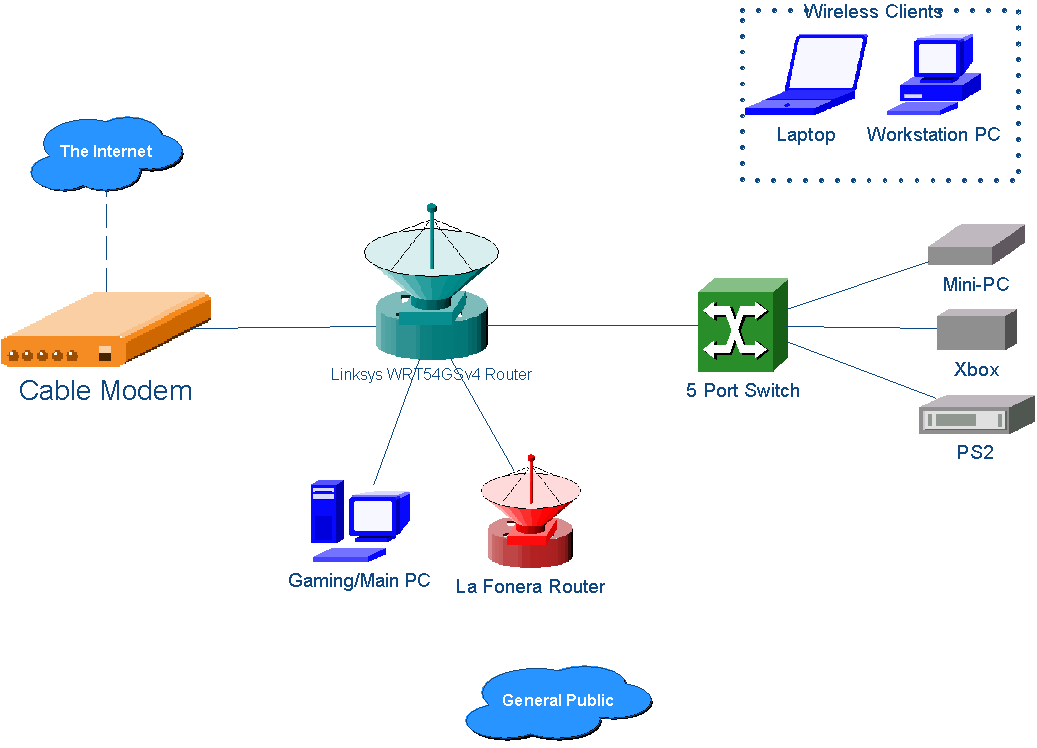

    Enjoy my diagram from a very old version of the badass program, Lanflow.
    [​IMG]


    Attached Files:

    Last edited by a moderator: Dec 14, 2009
  4. CurlySteve

    CurlySteve Elite Member

    Joined:
    Sep 26, 2007
    Messages:
    79
    Likes Received:
    15
    Location:
    Birmingham, England, UK

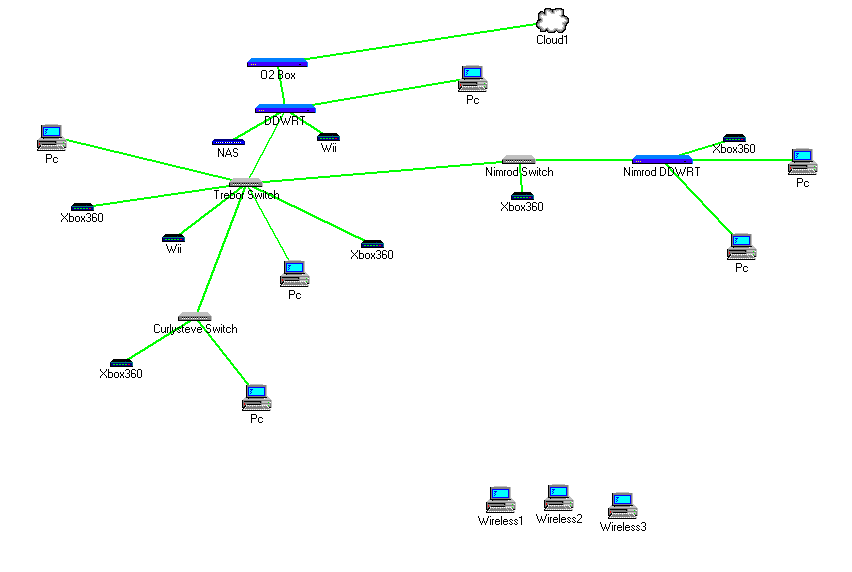

    This is ours:

    [​IMG]
    made in network notepad


    Attached Files:

  5. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,813
    Likes Received:
    3,578
    Location:
    Yorkshire, England

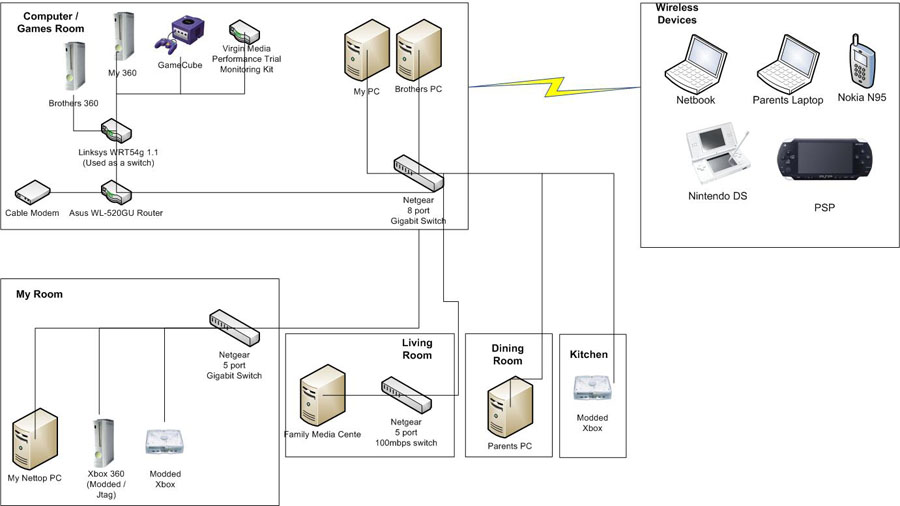

    Our network started with 2 computers connected with a crossover cable...

    [​IMG]

    The network wired up as logically as possible, the main devices connect in to the 8 port gigabit switch. Wires run around the outside of the house to network wall points in each of the rooms listed above. A switch is then connected to the wall point if more than one device is in that room.

    We don’t really use wireless, its disabled 99% of the time unless the DS or PSP need to go online which is hardly ever. If the laptops are ever used at home they usually just connect to the switch in the living room.


    Attached Files:
