Easily update your Jtagged Xbox 360 to Kernel / Dashboard 12611 with FbBuild 0.11

Discussion in 'Xbox 360 Guides' started by InsaneNutter, Nov 12, 2010.

  1. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,399
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    The original is from when the console was a new, non-jtaged console. This console has never had XRB on it.

  2. sirleo

    sirleo Member

    Joined:
    Nov 12, 2010
    Messages:
    9
    Likes Received:
    0
    And did you upgraded Dashboard to 7371 before start to read first nand?
    What is your MFD of console? Mine MFD is 04.03.2009 and was Dashboard version 7363 (section 6BL & 7BL Patch 1)

    BTW: I saw a movie on Youtube:

    [video=youtube;RGwWUgWV_t0]https://www.youtube.com/watch?v=RGwWUgWV_t0[/video]

    Take a look at 2min55s, why he has there 12611 and we have anything? where are differences? strange....

  3. Coko

    Coko New Member

    Joined:
    Nov 13, 2010
    Messages:
    2
    Likes Received:
    0
    I just run the command lines in xp and it said that ibuild is not a valid 32 exe, what's the story with that? and is there a solution.

    Thanks

  4. hucklebuck

    hucklebuck New Member

    Joined:
    Nov 13, 2010
    Messages:
    3
    Likes Received:
    0
    I followed the tut. used my original nand. When I boot up the 360 it does nothing. What just happened? What should I do now? Please HELP!

  5. sirleo

    sirleo Member

    Joined:
    Nov 12, 2010
    Messages:
    9
    Likes Received:
    0
    please take a screenshot of your original nand opened in 360_flash_tool and paste here

  6. hucklebuck

    hucklebuck New Member

    Joined:
    Nov 13, 2010
    Messages:
    3
    Likes Received:
    0

    What info do you need?

  7. sirleo

    sirleo Member

    Joined:
    Nov 12, 2010
    Messages:
    9
    Likes Received:
    0
    for compare with our screenshots at page 2

  8. hucklebuck

    hucklebuck New Member

    Joined:
    Nov 13, 2010
    Messages:
    3
    Likes Received:
    0
    Here is the original nand dump. Screen01.JPG

  9. sirleo

    sirleo Member

    Joined:
    Nov 12, 2010
    Messages:
    9
    Likes Received:
    0
    have you other dumped nands? with xbr/freebot from your console? if yes, you have to use it to extract smc.bin from them, kv.bin and smc_config.bin are ok from original.
    if your xbox can not boot or has E79, you must to upload xellous/free60 (only 2MB) by lpt, and then power on and insert usb-stick with prepared updflash.bin.

  10. Harcroft

    Harcroft Addict

    Joined:
    Mar 10, 2009
    Messages:
    391
    Likes Received:
    143
    Location:
    Ontario, Canada
    Please folks, this makes my brain hurt every time I see it. It's "kernel" or "colonel". The world "kernal" does not exist in the english language, and I'm pretty sure if it does exist in another language, it doesn't mean the core software, or center of a fruit.

    In this case, since no armed forces officers are involved, the proper term is kernel. Please save my brain (as well as others') from the terrors of gross misnomers and miswordings.

  11. Moorfrost

    Moorfrost Member

    Joined:
    Nov 13, 2010
    Messages:
    12
    Likes Received:
    0
    I used this method with my dump I made before jtagging and now it won't boot. How do I fix this?

  12. neoshockwave

    neoshockwave New Member

    Joined:
    Nov 14, 2010
    Messages:
    1
    Likes Received:
    0
    I just wanted to say this was a GREAT tutorial. Thanks to your help I am now updated!

  13. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,399
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    I have corrected that type-o for you ;) spelling is not my strong point but I do the best i can with a spell checker.

    Can you boot Xellious? if not you will need to re flash your nand by USB or lpt unfortunately.

  14. Moorfrost

    Moorfrost Member

    Joined:
    Nov 13, 2010
    Messages:
    12
    Likes Received:
    0
    nope, can't boot into xell. In which case I reflash back to the original dump or can I use my 360 fladh backup? After that, can I use my 360 flash backup file with this to get to 12611? Sorry, I'm such a noob.

  15. badt18

    badt18 New Member

    Joined:
    Nov 14, 2010
    Messages:
    1
    Likes Received:
    0
    I have tired this a number of times and just doesnt wanna work for me.

    I have the Alternate JTAG SMC

    I have flashed XBR 8955 with editing the SMC
    then flashed freeboot 9199 v0.32 went all fine

    now i am tryin to flash 12611 dash and using the freeboot nand but i keep getting errors
    if i do it this method in this tut when i power on the xbox i get xell come up with error request sense failed.

    I then tired the youtube video tut on the posts and i get e79 error because of the SMC but i ticked the box Aud_clamp Fix box so im not sure y im getting this :(

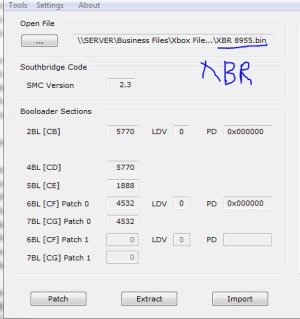

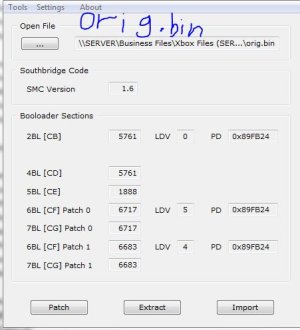

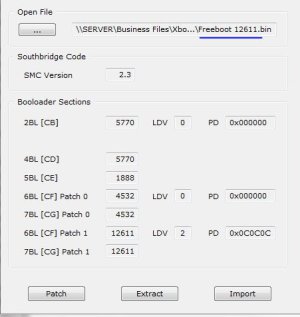

    origbin.JPG xbrbin.JPG freeboot.JPG freeboot12611.JPG

    Any hope Please!! i have flashed this thing like 20 times :( i dont understand y its not working.

  16. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,399
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Use your working backup of XBR / Freeboot to create a hacked 12611 nand. You will have to flash it over USB or LPT though if you can not boot Xell.

  17. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,399
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Has your console got a DVD drive?

    In fbBuild_0.1\bin there is a file called freeboot_alt.bin

    If your console has no DVD drive you need to rename this to freeboot.bin and make your 12611 nand again, then flash it.

    I believe you will get stuck at Xell after flashing without a DVD drive from what I read over at Xbox Scene.

  18. bbq

    bbq New Member

    Joined:
    Nov 14, 2010
    Messages:
    1
    Likes Received:
    0
    This is the first time updating my jtag'd 360 (arcade Falcon 16 MB NAND) and since you mentioned it's better to use your current Freeboot NAND, I tried to get it with Flash360. Everytime I dump the NAND though, I keep getting the same error:
    ERROR: Reading block 38 status 258
    Can I just continue with the tutorial or do I need to do something else?

  19. sirleo

    sirleo Member

    Joined:
    Nov 12, 2010
    Messages:
    9
    Likes Received:
    0
  20. Moorfrost

    Moorfrost Member

    Joined:
    Nov 13, 2010
    Messages:
    12
    Likes Received:
    0
    How do I go about doing that? Or can I use freeboot toolbox maker and do that via usb?
