Ford Audio Bluetooth / USB firmware update - November 2012 release - How to update

Discussion in 'Guides and Tutorials' started by Howard, Sep 29, 2014.

  1. Adrian.IT

    Adrian.IT New Member

    Joined:
    Feb 8, 2018
    Messages:
    1
    Likes Received:
    1
    Hi I registered to thank you for the update and tutorial. I have a 2011 Focus and every time dat my galaxy s7 edge established connetion with Bluetooth (Bluetooth audio. Connection error) and on display no battery and signal status, my biggest problem dat wen calling with Bluetooth i can hear person end on the oterside nothing. Ford dealer asked me 70 euros for diagnostic + I think for update, and I have to leave car for 1 day. After update evrifing works fine and faster. Sorry for English T9 A GREAT THANK YOU ✌

    InsaneNutter likes this.
  2. Bo_K

    Bo_K New Member

    Joined:
    Feb 21, 2018
    Messages:
    2
    Likes Received:
    0
    Hi!
    I also have one question.... I also have Ford Focus Mk2, 2009.... but WITHOUT USB.
    Is there a solution for this "problem"?
    I have Blaupunkt NX radio.. with SD slot?
    Is there any possibility to update over SD?
    Thx for help!
    Bo.
    [​IMG]

  3. Bo_K

    Bo_K New Member

    Joined:
    Feb 21, 2018
    Messages:
    2
    Likes Received:
    0
    Did you find the solution?? Did you upgrade BT??

  4. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    I'd suggest following this tutorial, however for anything that which says "USB memory stick" simply do it with the SD card, hopefully it will let you update the same.

  5. Thatguyirl

    Thatguyirl New Member

    Joined:
    Feb 23, 2018
    Messages:
    1
    Likes Received:
    0
    Hi Folks. I am doing this exactly as described but when I insert the usb stick it says read error for about 2/3 seconds then says initalising and stays that way without ever changing to updating. anyone got any ideas?

  6. AshP

    AshP New Member

    Joined:
    Mar 14, 2018
    Messages:
    1
    Likes Received:
    0

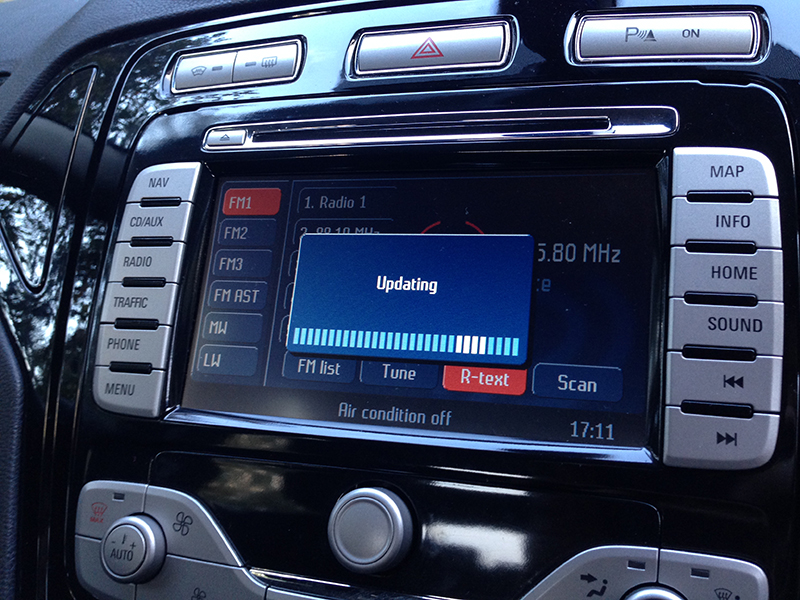

    The picture you show - I have the same unit - but where is the usb socket?? Certainly not on the the front - am I missing something?

  7. Meanderingbunyip

    Meanderingbunyip New Member

    Joined:
    Mar 16, 2018
    Messages:
    4
    Likes Received:
    0
    Have the same issue as you mate. Have tried the process numerous times on numerous different usbs and just get to the initalising screen. My unit wont connect to Bluetooth but intermittently connects to aux before dropping out. This has only started happening in the last week. Before that everything worked fine.

  8. Meanderingbunyip

    Meanderingbunyip New Member

    Joined:
    Mar 16, 2018
    Messages:
    4
    Likes Received:
    0
    Any ideas how to solve this?


    Attached Files:

  9. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    @Meanderingbunyip is the USB drive FAT32 formatted? at a guess it looks like the car can't read the usb drive so could be NTFS formatted.

  10. Meanderingbunyip

    Meanderingbunyip New Member

    Joined:
    Mar 16, 2018
    Messages:
    4
    Likes Received:
    0
    Thanks for the reply. They are fat32 formatted on a MAC. Does that make any difference? I don't own a PC.

  11. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    It shouldn't do, its just something that's easily overlooked and could have been what was causing the error. My Macbook Air likes to format to exfat by default.

    Only other thing i can suggest is try a different usb drive, i remember someone had no luck with a usb 3.0 drive, however an older usb 2.0 drive worked perfectly. It should't make a difference, however it did.

  12. Meanderingbunyip

    Meanderingbunyip New Member

    Joined:
    Mar 16, 2018
    Messages:
    4
    Likes Received:
    0
    Cheers nutter. i will try it again on the weekend and post how it goes.

  13. KevH18

    KevH18 New Member

    Joined:
    Apr 7, 2018
    Messages:
    1
    Likes Received:
    0
    Hi,

    I have a Ford Focus Tit X with a build date of July 11 and had to replace the display screen. Since I've done that I've had no Bluetooth, voice activation and limited USB capabilities so was really pleased when I found this guide. However, I've now tried three seperate USB sticks, the last of which was a SanDisk USB2.0 with 4gb of memory and it still isn't updating.
    I used a Sandisk 8gb first and it was initializing but there were no files and didn't then look as if anything was happening. Tried a Phillips 16gb disk and it said it was incompatible. Lastly tried the 4gb stick and it said no files but again nothing happened.

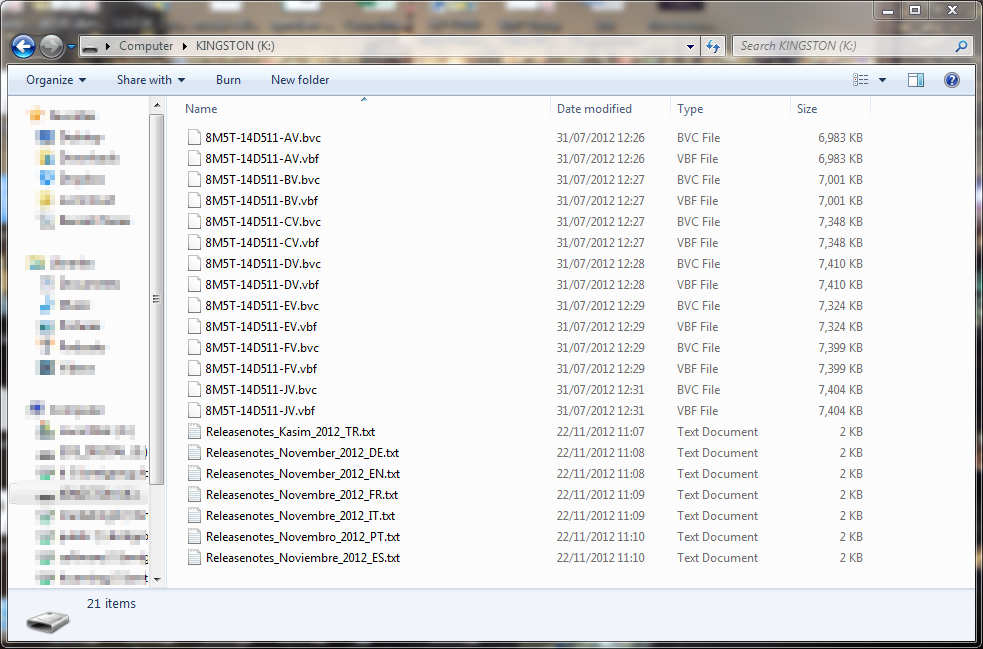

    Formatted as FAT32 and copied exactly as it says dirextly onto the stick and not in any folders so can't understand why it isnt working.
    Any help at all appreciated!

  14. Kurtis370

    Kurtis370 New Member

    Joined:
    Apr 21, 2018
    Messages:
    1
    Likes Received:
    2
    Just wanted to say thanks for this! My music was quite crackly, so I'm delighted this has fixed it.

    I had no luck at first with an 8GB USB so tried a different 2GB USB and it worked. Don't think either are USB 3.0, so don't believe that was why the first didn't work. The 2GB USB I chose different settings when formatting to FAT so maybe that was it.

    For anybody wondering I did it on a MacBook running MacOS High Sierra and formatted it to MS-DOS (FAT) under the Master Boot Record (not GUID). Doing this and following the instructions above made it work first time.

    Also make sure you have the radio on specifically (not just the head unit itself turned on).

    Thanks again!

    MattS and InsaneNutter like this.
  15. MattS

    MattS New Member

    Joined:
    May 6, 2018
    Messages:
    1
    Likes Received:
    0
    - help wanted -

    Hi!

    Bought a Ford Focus 2009 recently and just tried to update the audio software using our tutorial.

    All went good, up untill the point of actually updating :)

    What happens: when I turn on the ignition, for a split second it seems to start updating but directly it shows an error messGe stating the update didnt work, please try again. And that message keeps appearing when I retry the process.

    Any thought?

    Thanks! Matt

  16. Tomasz

    Tomasz New Member

    Joined:
    May 14, 2018
    Messages:
    1
    Likes Received:
    0
    Question: does the nov2012 release includes all features of previous releases or I have to install the updated separately one by one?

    thanks
    Tom

  17. Ralf84

    Ralf84 New Member

    Joined:
    May 19, 2018
    Messages:
    1
    Likes Received:
    0

    Hello Matt

    I got the same problem as you have

    Any chance you found the answer by now ?

    Hope you can help

    Greetings

    Ralf

  18. Mr Sparrow

    Mr Sparrow New Member

    Joined:
    May 20, 2018
    Messages:
    1
    Likes Received:
    0
    hi dude

    I’m using Ford Focus 2018 model

    I did all the steps exactly the the way you said but it was taking more than an hour my battery is about to die so i just turned off in middle of it.

    After that whenever I turn on the device it always shows “update running please wait”

    Is there any solution to solve this problem

    Pls help me if you know something
    Thanks

  19. Sascha Sajjad

    Sascha Sajjad New Member

    Joined:
    Sep 28, 2018
    Messages:
    1
    Likes Received:
    0
    Hi guys,

    I recently bought my first car, a ford fiesta titanium 2008 and I can't connect my Bluetooth via my Sony XZ premium to play music. It connetco for calls but for music, I need to use the AUX. I've followed the advice via updating on a USB stick formatted to fat32 and with the correct files on the USB drive, however when the drive is plugged in, it briefly says "Update running" but then immediately says "update failed, please restart update".
    Any help would be massively appreciated,
    Thanks!

  20. Niclass

    Niclass New Member

    Joined:
    Oct 16, 2018
    Messages:
    1
    Likes Received:
    1
    A big thank you Howard! Now in 2018 it is still needed to update a Ford S Max from 2012 . The Bluetooth was not working since 1 year now but I am a very happy man again.
    Small advise for people abroad: change the language setting into English or German and start searching the Web with the error message you see now. This Will give you more hits than with the Dutch language like I did.
    Adios amigos

    InsaneNutter likes this.
