GPU in SLI running really hot at idle

Discussion in 'Computer and Gadget Help Center' started by CurlySteve, Apr 5, 2014.

  1. CurlySteve

    CurlySteve Elite Member

    Joined:
    Sep 26, 2007
    Messages:
    79
    Likes Received:
    15
    Location:
    Birmingham, England, UK

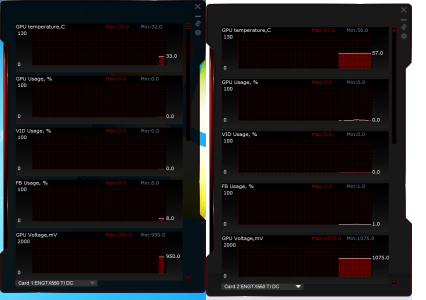

    I have recently spent quite a lot of money on upgrading my computer so it would incorporate SLI. I have 2 550TI cards at the moment which are identical. The problem that I am having is that one of them is running nearly 20c hotter than the other. 57c at idle and on load well over 80c. I was after some advise whether there is some specific SLI cooling I could purchase or a way to cool it down. I have tried under clocking the card and it doesn't seem to effect the temp by more than 2c. I have attached a picture of the temps of both cards at idol.


    Attached Files:

  2. Dark Scyth

    Dark Scyth Moderator

    Joined:
    Mar 3, 2009
    Messages:
    2,594
    Likes Received:
    459
    If I had to guess, the one that runs 20c more is your primary card. Is that card higher up than the other card, maybe restricted air flow? A picture of how the GPUs are set up in your PC would be nice.

  3. CurlySteve

    CurlySteve Elite Member

    Joined:
    Sep 26, 2007
    Messages:
    79
    Likes Received:
    15
    Location:
    Birmingham, England, UK

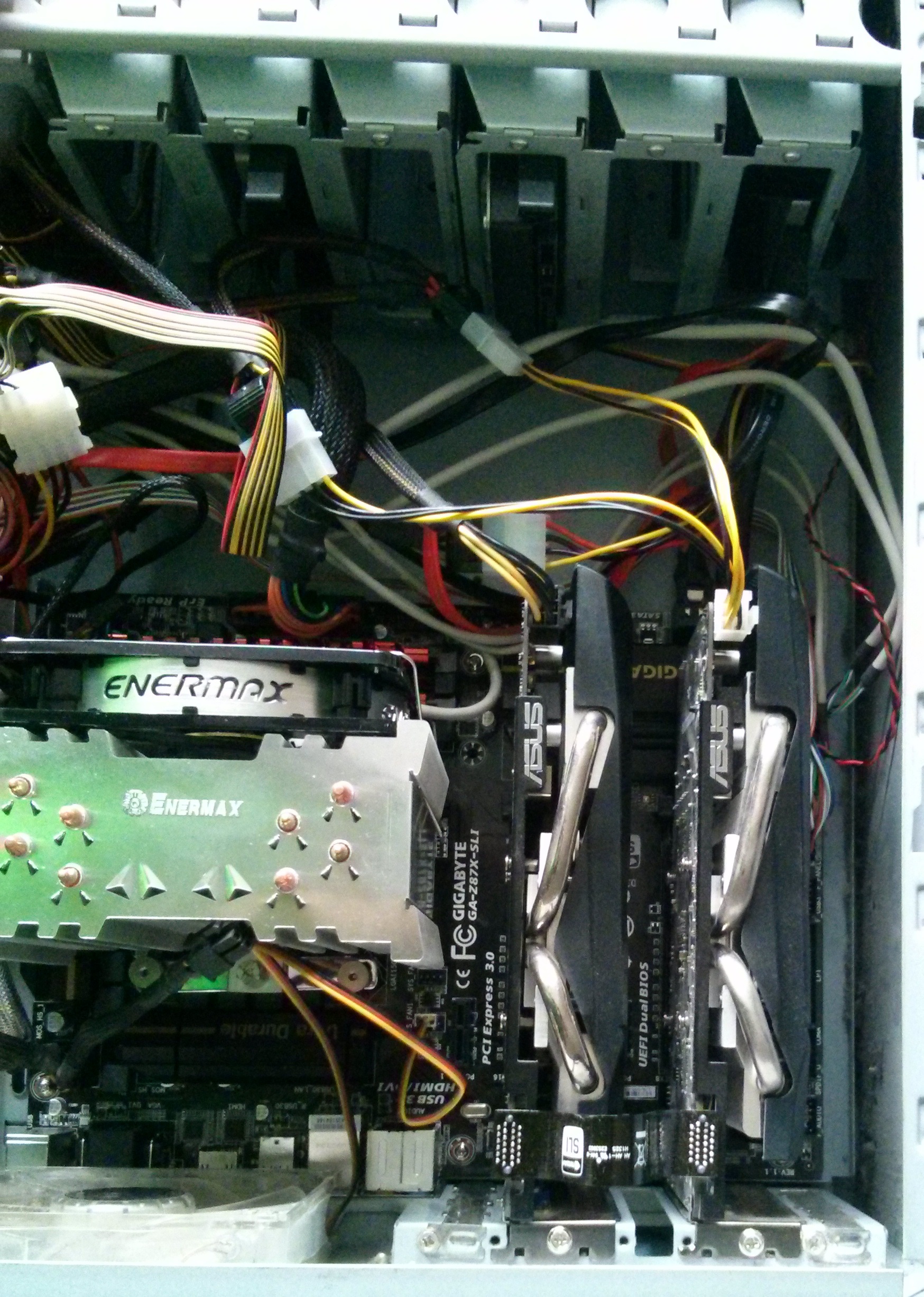

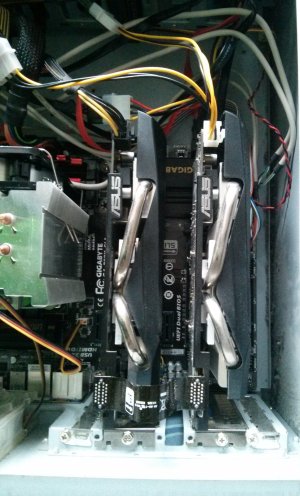

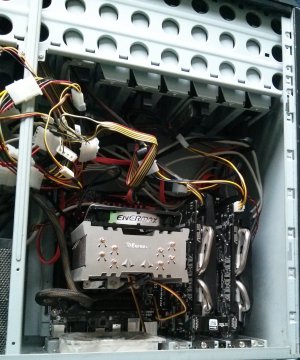

    I have attached a few pictures of my setup in the case. There is nothing to restrict airflow at all. Both monitors are plugged into the top card.


    Attached Files:

  4. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,740
    Likes Received:
    3,513
    Location:
    Yorkshire, England
    Is it the top card which is hotter than the bottom card? if so the top card is likely much warmer as heat rises (i know i'm stating the obvious here) and the airflow is pre-heated by the bottom card.

    You could try swapping the cards around and seeing if the card at the bottom in any hotter when at the top, that should hopefully help narrow the problem down.

    The case also looks pretty tight for airflow with all the hard drive bays at the front. Does it any any vents / fans on the side of the case?
