Hi, wazzup :)

Discussion in 'Introduce Yourself' started by JTAGDude, Jul 14, 2013.

  1. JTAGDude

    JTAGDude New Member

    Joined:
    Jul 14, 2013
    Messages:
    2
    Likes Received:
    0
    Hi guys, I came to this forum to find out how to revive my Xenon JTAG after attempting to JTAG it and install TX DemoN Phat after reviving it

  2. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,396
    Likes Received:
    3,410
    Location:
    Yorkshire, England
    Welcome, did you manage to fix the console?

  3. JTAGDude

    JTAGDude New Member

    Joined:
    Jul 14, 2013
    Messages:
    2
    Likes Received:
    0
    It just won't turn on after flashing XBR3 for Xenon
    using LPT method with NANDPro20b. First I tried booting after the SMC cleared with the eject button and Xell didnt even pop up and didn't even change status on the power brick.

    Thanks in advance,
    JTAGDude :)

  4. ZimHB123

    ZimHB123 Well-Known Member

    Joined:
    Aug 27, 2011
    Messages:
    54
    Likes Received:
    2
    Location:
    Somewhere in the Milky Way
    This might help:

    1) Disconnect Power Cable from 360, and disconnect LPT cable from PC
    2) Leave 360 unplugged for 2 mins
    3) short data pins 29-32 being careful not to touch power pins 36&37 (my screwdriver was actually too big and ended up shorting 27-32 which worked fine for me, make sure the screwdriver head sits flat along the pins so it touches all of them without pressing too hard to avoid damaging)
    4) Plug in Power
    5) WAIT 5 seconds!!! <--- did not see this in other guides and it helped me!
    6) Remove short
    7) Plug in LPT cable
    Erase entire nand using the command: "nandpro lpt: -e16 0 400"

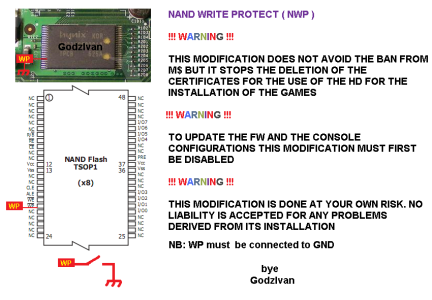

    http://pictures.xbox-scene.com/xbox360/NWP_diagram/NWP.png


    Attached Files:

    • NWP.png
      File size:
      138 KB
      Views:
      581
