Known 360 Builds (on MS Server)

Discussion in 'Gaming Hangout' started by zefie, Oct 20, 2010.

  1. zefie

    zefie Elite Member

    Joined:
    Oct 16, 2010
    Messages:
    91
    Likes Received:
    18
    With my newfound discovery of the xenon folder on download.xbox.com, I have made a scanner to find the list of known builds that still exist (somewhere) on the server using my previous 403/404 method.

    This is a complete list of beta and release builds from 7328 onward!

    (Don't ask for them I don't have them and the server doesn't have the su20076000_00000000 file, or we haven't found it yet, we also can't access ALL of these builds, just verify they exist.)

    Public releases are in bold

    7328, 7335, 7342, 7343, 7347, 7349, 7352, 7355, 7356, 7357, 7363, 7371, 8473, 8478, 8482, 8483, 8484, 8487, 8488, 8489, 8490, 8491, 8492, 8493, 8495, 8496, 8498, 8507, 8939, 8944, 8947, 8949, 8953, 8955, 8961, 8964, 9177, 9182, 9185, 9187, 9189, 9195, 9197, 9199, 12111, 12125, 12126, 12145, 12168, 12188, 12209, 12274, 12278, 12330, 12340, 12341, 12353, 12365, 12377, 12379, 12384, 12387, 12392, 12394, 12399, 12402, 12404, 12408, 12413, 12416, 12546, 12551, 12558, 12560, 12565, 12567, 12573, 12574, 12575, 12581, 12583, 12587, 12590, 12595, 12597, 12599, 12603, 12606, 12607, 12609, 12611

    Public Releases use a simple folder structure


    xbox-ht.dl.msecn.net/content/xenon/7357/0/0/system.manifest
    xbox-ht.dl.msecn.net/content/xenon/7357/0/0/FFFE07DF00000001.cab
    xbox-ht.dl.msecn.net/content/xenon/7357/0/0/FFFE07DF00000002.cab
    ect...

    Beta builds use a hashing structure that would take a few days to brute force per file. As with typical Microsoft content servers the characters in the hash are HEX, thus you have a limited range of [0-9][A-F] but that is 16^32 possibilities per file. The system.manifest file has 16^16 possiblities, but would not disclose the hash of the other files (possibly if decrypted).

    Apparently as of 12611 public builds no longer use the /0/0 structure.

    Last edited: Nov 1, 2010
  2. jessenic

    jessenic Minecraft Guy

    Joined:
    Nov 17, 2008
    Messages:
    276
    Likes Received:
    77
    Location:
    Finland
    So, how to log updates?

  3. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,853
    Likes Received:
    3,591
    Location:
    Yorkshire, England
    I have packet sniffed the update process of my console updating to 12603 and found out where that update is saved on the Xbox servers, see the screenshot below.


    So the 12603 update can be downloaded from:

    Code:
    http://download.xbox.com/content/xenon/12603/su89433E9D8FC4B3B8FC5BBDDD943DE71FBED207E6.bin
    After that all you need to do is:

    • Create a folder in the root of your Fat32 formatted USB drive called $SystemUpdate
    • Rename su89433E9D8FC4B3B8FC5BBDDD943DE71FBED207E6.bin to su20076000_00000000
    • Place it in the folder and it will ask your console to update when the USB drive is inserted.

    Edit - I have packaged this up ready to update a console, can anyone confirm if the update is successful? Thanks :)

    Edit 2 - Nimrod and KingBurn say the update worked fine :)

    MasterChief likes this.
  4. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,853
    Likes Received:
    3,591
    Location:
    Yorkshire, England
    Share the internet to the Xbox 360 from a computer with two network cards, one network card is required for the internet connection, the 360 will connect to the other.

    [​IMG]

    [​IMG]

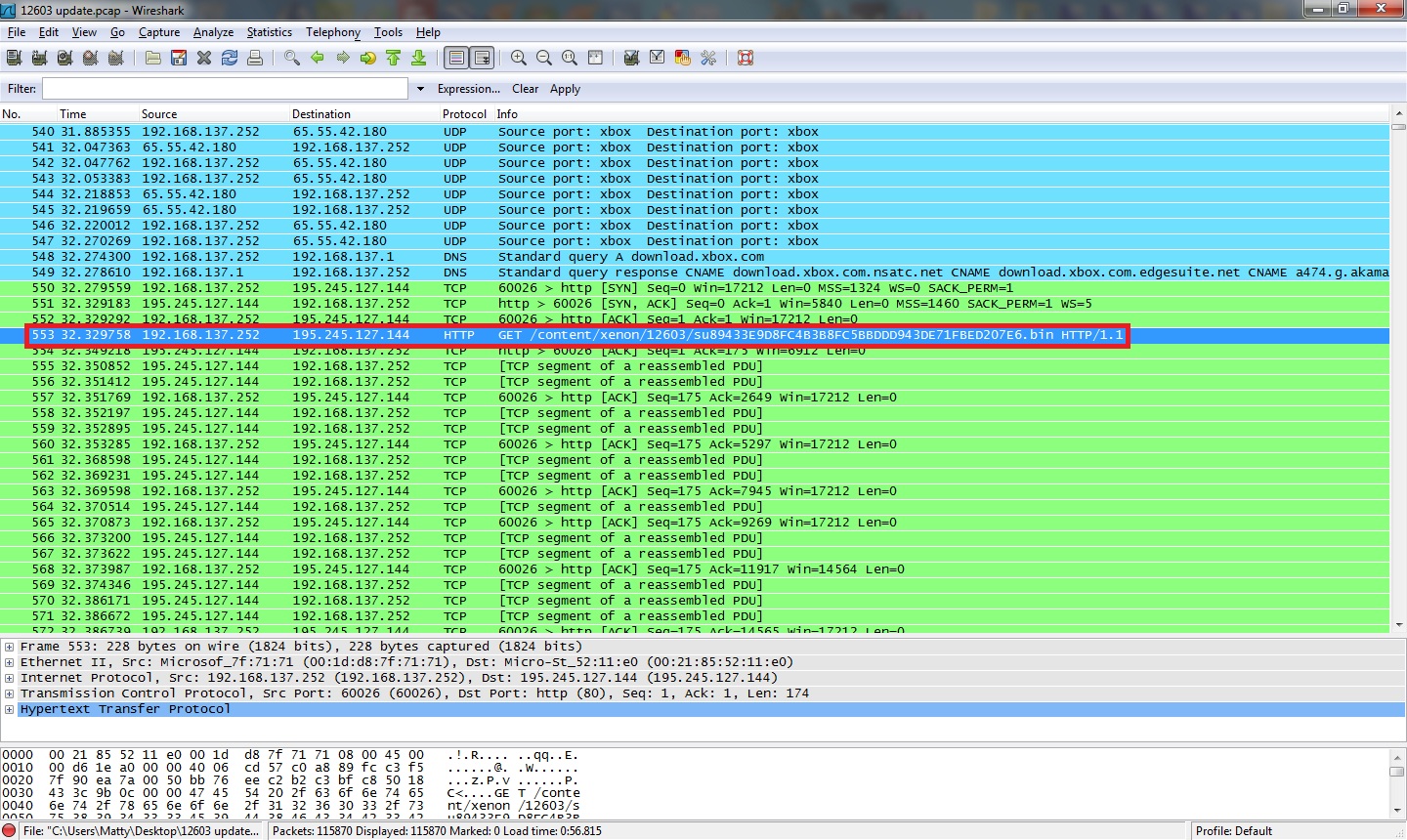

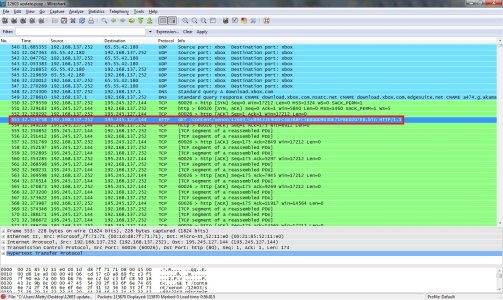

    You then need to install and run Wireshark

    Start capturing packets on the network card the 360 is connected to.

    [​IMG]

    Then sign in to live and update your console as normal, your computer can packet sniff what is going on as the update progresses, as shown in my post above.

  5. jessenic

    jessenic Minecraft Guy

    Joined:
    Nov 17, 2008
    Messages:
    276
    Likes Received:
    77
    Location:
    Finland
    Ok, I figured it out when I saw the Wireshark screenshot. And if you have two network cards, it is easier to just bridge the connections.

    I found many interesting things with wireshark. Like the My Community Channel.

  6. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,853
    Likes Received:
    3,591
    Location:
    Yorkshire, England
    Ive never had much luck doing that, a bridge would be better for getting an open connection on Xbox Live, however for the purpose of packet sniffing either should do fine.

  7. MasterChief

    MasterChief Addict

    Joined:
    Sep 17, 2009
    Messages:
    743
    Likes Received:
    89
    Location:
    The Internet
    Nice i did that and managed to get the download URL for the update too.

    Now the question is can we can past updates? it appears that might not be possible as we need to know the file name of the bin file. (Or do we know that already?)

  8. zefie

    zefie Elite Member

    Joined:
    Oct 16, 2010
    Messages:
    91
    Likes Received:
    18
    The public releases seem to be findable (aside from the su file), but I don't like these encrypted URLs.

    Edit: 12603 update worked, took away the live access I had tho ;( I shoulda probed more into finding the files for 12583. lol

    Edit2: BTW since you have a 102mb pcap, your pcap should have ALL of the urls needed to build a FULL bin (with avatars). While its too late coz I already updated, others can have non-ghost avatars ;)

  9. Hoxygen92

    Hoxygen92 Resident

    Joined:
    Oct 18, 2010
    Messages:
    128
    Likes Received:
    22

    Wow !!! , greatest method , but the avatar ?

  10. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,853
    Likes Received:
    3,591
    Location:
    Yorkshire, England
    Here are direct links to everything my console downloaded during the 12603 update.

    Code:
    http://download.xbox.com/content/fffe07d1/fb5c6cbfbd847b520f6606865abf898a6107a036.xcp?n=AE37B4BF29BBB714
    http://download.xbox.com/content/xenon/12603/su89433E9D8FC4B3B8FC5BBDDD943DE71FBED207E6.bin
    http://download.xbox.com/content/fffe07d1/manifests/01803D46265C9BF6/system.manifest
    http://download.xbox.com/content/fffe07d1/files/CFFC6BF756383A0892A7CC5713A6EAE0BA44939E/FFFE07DF00000002.cab
    http://download.xbox.com/content/fffe07d1/files/216897370A59B58681CF4A3DF22BF46E5F833A9D/FFFE07DF00000006.cab
    http://download.xbox.com/content/fffe07d1/files/F1DFF8F3680FFEA51F879C0B72FCE3BB0170A5C3/FFFE07DF00000008.cab
    http://download.xbox.com/content/fffe07d1/files/AAEE3DFD3CFE07FC699CA0F633298F4AD97DE90A/FFFE07DF00000001.cab
    http://download.xbox.com/content/fffe07d1/files/EAF06E294B1E9ABD1C47A3AFAC1ED5ED8B0619FC/AvatarEditor.xex
    http://download.xbox.com/content/fffe07d1/files/40A3513EB72AD18EDF8B85DD6392957FDD0D036D/BiometricSetup.xex
    http://download.xbox.com/content/fffe07d1/files/68B69D6CB2A20799D8BEDF6C0B582F9C586D9931/Dash.AttractionScreen.xex
    http://download.xbox.com/content/fffe07d1/files/FC6DD7209B57BD1D10DFFA037B33D19D68A4621D/dash.ExtraAVCodecs.xex
    http://download.xbox.com/content/fffe07d1/files/DA6F3F60C08340E5C842D8A5393CC43D0C244AF6/Dash.FieldCalibration.lex
    http://download.xbox.com/content/fffe07d1/files/6D0A41140A5A0620456935AA9876198D2ADC8219/dash.firstuse.xex
    http://download.xbox.com/content/fffe07d1/files/1DF79159C9FDC8DABCDC625EDC7FFB3F45A8E102/Dash.MP.Offline.lex
    http://download.xbox.com/content/fffe07d1/files/C6FF4B81DA1865DF44D411E81E970B2EF2748A9B/dash.natalpregame.xex
    http://download.xbox.com/content/fffe07d1/files/E4C0B2A06BD215FDADD1328BED763B0821349077/dash.NuiFirstUse.xex
    http://download.xbox.com/content/fffe07d1/files/18F19AB0BECA8B2D98F23A4F2C960F9A7CAA15EC/dash.nuihub.xex
    http://download.xbox.com/content/fffe07d1/files/795216D20656F365B1BFD9BCD172630940B7D4B8/Dash.NuiTroubleshooter.lex
    http://download.xbox.com/content/fffe07d1/files/F3A1CD0C765235F2BB4F468F67FC42406F580B9E/dashnui.xex
    http://download.xbox.com/content/fffe07d1/files/3C65E37CAF6B33C646E06627C433C1A2DDFF60E1/Guide.AvatarMiniCreator.xex
    http://download.xbox.com/content/fffe07d1/files/F95DF1C67B85E9A64F0058143173DD8A25436D20/Guide.NuiTroubleshooter.xex
    http://download.xbox.com/content/fffe07d1/files/17D006AA9B4099B68216E63E9B3CCCFAF0209999/livepack.xex
    http://download.xbox.com/content/fffe07d1/files/DECC79BCADA37CF1F53EEEB75625683A83B160C8/mediasite.xzp
    http://download.xbox.com/content/fffe07d1/files/966F2237415A6C9CFDFB2821A3AF99D3D27CE8F4/natalsu.xex
    http://download.xbox.com/content/fffe07d1/files/2CD65090120CC552AF384CBBB9940A0E19FBFF92/nuihud.xex
    http://download.xbox.com/content/fffe07d1/files/8C9FF5B864CF98AA1983736F3BE06470B3B9AE78/Xam.Community.xex
    http://download.xbox.com/content/fffe07d1/files/D0BA5689D1A13FA5560A25F239C8935D84B08D0C/Xam.LiveMessenger.xex
    http://download.xbox.com/content/fffe07d1/files/FE7A5F9EFA04A675CB14369C52D22640BD38FD52/Xam.WordRegister.xex
    http://download.xbox.com/content/fffe07d1/files/B4D0FE21AD216A44E45E1BF1E43D699AD187DAF5/XimeDic.xex
    http://download.xbox.com/content/fffe07d1/files/E4C2A6FDF84719676A51D306D916E1F2125AB71B/XimeDicCh.xex
    http://download.xbox.com/content/fffe07d1/files/9CABF291723A63E89D7554A232D1924F289ED4E3/ximedicex.xex

    Now I have been messing about with those trying to get the avatars to restore on 360 running the 12603 dash with a 4gb usb stick as the only storage device connected.

    I can not get them to restore, now I don't know if this is because I am using a USB drive as storage on the 360 and not a hard drive. (My hard drive already has the avatar files on it from when I updated on live this morning)

    Basically I have 1x USB stick configured for 360 storage, then another Fat32 formatted USB stick with the $SystemUpdate folder on it.

    If you haven't updated yet you can try downloading 12603avatar-test.rar, here is what is in that rar:

    All the files I have linked to above, with the following modifications done

    su89433E9D8FC4B3B8FC5BBDDD943DE71FBED207E6.bin has been renamed to su20076000_00000000

    This file has to be renamed for the 360 to pick the update up I can confirm that much.

    Now on the update XboxHacker leaked with working avatars the following .cab files have no file extentions, so I have removed them.

    FFFE07DF00000001.cab renamed to FFFE07DF00000001
    FFFE07DF00000002.cab renamed to FFFE07DF00000002
    FFFE07DF00000006.cab renamed to FFFE07DF00000006
    FFFE07DF00000008.cab renamed to FFFE07DF00000008

    Xna_TitleLauncher.xex - Now I dont know if this is required or not, my console didnt download it when updating to 12603 so the one included in the rar is from 12416 that XboxHacker leaked, if it is required this is likely the wrong version of it anyway.

    If someone can try and update a console with 12603avatar-test.rar and let me know if you get the avatars back or not that would be great.

    Corona likes this.
  11. seanpr92

    seanpr92 Godlike

    Joined:
    Oct 12, 2010
    Messages:
    1,159
    Likes Received:
    195
    Location:
    Nottingham, United Kingdom
    would this not update if i used the 10mb one? im thinking it wont wrk for me

  12. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,853
    Likes Received:
    3,591
    Location:
    Yorkshire, England
    It should restore the avatars if you have updated, well that happens on the 9199 dash anyway.

    For me it doesn't work with the latest beta, i'm not sure if its because i'm using a USB pen for storage as mentioned above or if its because some files are missing... i'm guessing i'm likely missing a file.

  13. seanpr92

    seanpr92 Godlike

    Joined:
    Oct 12, 2010
    Messages:
    1,159
    Likes Received:
    195
    Location:
    Nottingham, United Kingdom
    so do i just download your file and put the $update thing on my usb and it will come up?

  14. mark5916

    mark5916 Member

    Joined:
    Oct 6, 2010
    Messages:
    10
    Likes Received:
    1
    OK i am using a USB-STICK either....

    I download them i will try and let you now !!!!!!!!

  15. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,853
    Likes Received:
    3,591
    Location:
    Yorkshire, England
    Yes, thats what I hope will happen anyway.

  16. Hoxygen92

    Hoxygen92 Resident

    Joined:
    Oct 18, 2010
    Messages:
    128
    Likes Received:
    22
    Won't work for me , perhaps why i have already update the consolle ?

  17. seanpr92

    seanpr92 Godlike

    Joined:
    Oct 12, 2010
    Messages:
    1,159
    Likes Received:
    195
    Location:
    Nottingham, United Kingdom
    ok im gunna try on my end

  18. seanpr92

    seanpr92 Godlike

    Joined:
    Oct 12, 2010
    Messages:
    1,159
    Likes Received:
    195
    Location:
    Nottingham, United Kingdom
    nope wont work

  19. zefie

    zefie Elite Member

    Joined:
    Oct 16, 2010
    Messages:
    91
    Likes Received:
    18
    it wont work because you already flashed the update, and microsoft wont let you reflash the existing version, for some stupid reason. however if it actually connected to live like 12583, we could emulate the xbox server and get it to work, but its too late for that, heh

  20. seanpr92

    seanpr92 Godlike

    Joined:
    Oct 12, 2010
    Messages:
    1,159
    Likes Received:
    195
    Location:
    Nottingham, United Kingdom
    comes out in a couple of days anyway should let me connect then eh?
