Burn Xbox 360 XGD3 ISO Games With The BurnerMAX Payload Tool

Discussion in 'Xbox 360 Guides' started by Hoffman, Feb 26, 2017.

  1. Hoffman

    Hoffman Addict

    Joined:
    Jun 1, 2007
    Messages:
    288
    Likes Received:
    369
    Burning Xbox 360 XGD3 ISO games is easy, once you know how. A lot of people seem to have problems with the newer XGD3 game discs which have been used since late 2011. The only way to correctly burn these larger XGD3 Xbox 360 ISO's is by using the BurnerMAX Payload Tool and a compatible DVD drive.

    To get started burning Xbox 360 XGD3 ISO's you first need to download:
    Once you have done that load IMGBurn up with your blank DVD-DL disc in your compatible DVD burner.

    You should see the following, at this moment in time we are just taking note of the disc free space, which is 8,547,991,552 bytes:


    Open the BurnerMAX Payload Tool, select the DVD drive you are using to burn the Xbox 360 ISO, then select burner max:

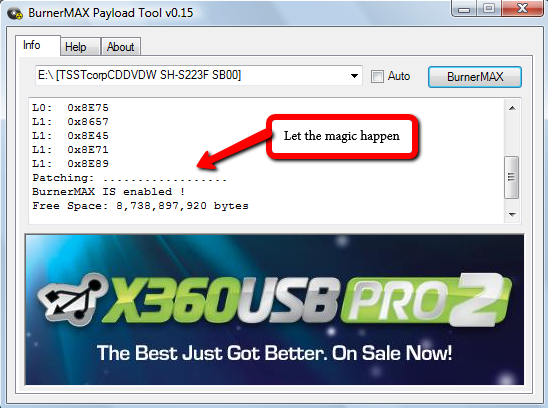

    You should then see the patching taking progress, allowing the full sized XGD3 Xbox 360 ISO to be burned:


    Now go back to IMGBurn and re load the DVD drive. You should see the disc size is now 8,738,897,920 bytes


    This means you can now burn the full Xbox 360 XGD3 ISO and the burn process will not fail at 97%.

    Be aware you will need to use the BurnerMAX Payload every time you insert a blank DVD+R DL disc.

    Not all DVD burners are compatible with the BurnerMAX Payload, however below is a list of DVD drives confirmed working with the BurnerMAX Payload. If your DVD drive is not on the list, I have no idea if it will work. You will just need to try and see if it does.

    BurnerMAX Payload compatible DVD drives:

    ASUS DRW-20B1LT
    ASUS DRW-24B1 ST/LT
    ASUS DRW-24B3 ST/LT
    ASUS DRW-24B5 ST/LT
    ASUS DRW-24D5MT (Reported by @sinasinahm)
    ATAPTI EHU 324 A5L1Q
    DH-16ABS
    DVR-SL18LBK
    HP DVD1260i
    HP DVD1270i
    HP PLDSDL8ATL
    LITE-ON DH-16ABSH11B
    LITE-ON iHAP 122-04W
    LITE-ON iHAS 322
    LITE-ON iHAS x24 (A)/B/C/DU
    LITE-ON iHAS/iHAP 122-04C
    Optiarc AD-7220S
    Optiarc AD-7580S
    Optiarc AD-7640A
    Optiarc AD-7740H
    Optiarc BC-5500S
    PIONEER DVR-110D
    PIONEER DVR-111D
    PIONEER DVR-118L
    PIONEER DVR-216D
    PIONEER DVR-218
    PIONEER DVR-219
    PIONEER DVR-220
    PIONEER DVR-A18L
    PIONEER DVR-TD10RS
    PIONEER S18LBK
    Plextor PX-880SA
    Plextor PX-L890SA
    Slimtype DS8A3S
    Slimtype DS8A5SH
    Slimtype DS8A8SH
    SLIMTYPE DVD A SS8A55HXAA2
    TEAC DV-W524GSB
    TSSTcorp SE-S084B
    TSSTcorp SH-222AB
    TSSTcorp SH-223F
    TSSTcorp SH-224BB
    TSSTcorp SH-243N
    TSSTcorp SH-S202
    TSSTcorp SH-S202N
    TSSTcorp SH-S203D
    TSSTcorp SH-S223Q
    TSSTcorp SN-208AB
    TSSTcorp SN-208BB
    TSSTcorp TS-L633B
    TSSTcorp TS-L633J
    TSSTcorp TS-L633R
    TSSTcorp TS-T633C


    Attached Files:

    werapong likes this.
  2. sinasinahm

    sinasinahm Member

    Joined:
    Jul 23, 2017
    Messages:
    16
    Likes Received:
    3
    I just bought an Asus drw- 24d5mt drive and it supports burnermax payload tool,please add it to the supported drives list

    Last edited: Jul 29, 2017
    InsaneNutter likes this.
  3. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,398
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Added to the list.

  4. maitrezoid

    maitrezoid New Member

    Joined:
    Sep 8, 2017
    Messages:
    1
    Likes Received:
    0
    Hello.
    I recently bought an Asus drw- 24d5mt, but all disks in XGD3 doesn't work.
    Did you really tried tu burn with it ?

    Disks are Verbatim CMC003.

    Thank you

  5. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,398
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Do you have the LT3.0+ Firmware flashed on your console

  6. sinasinahm

    sinasinahm Member

    Joined:
    Jul 23, 2017
    Messages:
    16
    Likes Received:
    3
    Yes,For example I burnt NBA 2K17 and GOW Judgment and both of them work fine..

  7. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,398
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    That means some games you have burned work fine, as to why others don't I can only speculate a possible bad download?

  8. belovski

    belovski New Member

    Joined:
    Aug 1, 2017
    Messages:
    1
    Likes Received:
    0
    which are your imgburn settings? I have SH-S223F too, but everybody says about Lite-On configs.
    i'm burning with differents settings, using MKM-001, but no good results.
    Fifa 17 even starts (Unauthorized disc).
    Farcry 4 crash during the installation (it opens the game screen).

  9. taoufiq_ouarki

    taoufiq_ouarki New Member

    Joined:
    Aug 24, 2020
    Messages:
    1
    Likes Received:
    0
    hello
    plz can you add this model:
    MATSHITA DVD-RAM UJ8A0AS
    thanks

  10. xero399

    xero399 Member

    Joined:
    Sep 16, 2021
    Messages:
    5
    Likes Received:
    1
    Hello, I tried a lot of tutorials to burn xgd3 games but all does't work. I have a Hitachi v78 drive with LT+3.0 on my xbox 360. I burned the games with verbatim dvds but I always get a "dirty disc" error.
    I pass the iso througt abgx360, then run BurnerMAX (detects correctly the burner), and then burning the game with ImgBurn (Tried CloneCD too)

    For example:

    NeverDead -> Can play some chapters but in some point of the game a get the error. Tried to install the game and got the error at 52%. Tried burning the game again (downloaded from other site) and exactly the same problem at the same point (ingame and on installation).
    Lost Planet 3 -> Installation fails with the "dirty disc" error. (don't remember if the game launched).
    Zone of the enders -> "Dirty disc" on launching the game and at the begining of the installation.

    I don't know if it is a problem with my Hitachi drive, the dvds, the burner... I don't now what's wrong

  11. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,398
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Could be the Hitachi drives laser failing. Can you fully install XGD3 games you have burned in the past?

    Can you install any legit games?

  12. xero399

    xero399 Member

    Joined:
    Sep 16, 2021
    Messages:
    5
    Likes Received:
    1
    Hi, thanks for your answer. A friend gave me his xbox360 about 2 weeks ago, then I flashed the Hitachi drive. All the xgd2 games that I burned installs without errors. I tried with xgd3 original games and works fine and installs perfectly. I only have problems with the xgd3 games that I burned.

  13. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,398
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    As original games seem fine it could possibly be the drive burning the games with that in mind, is the drive you are using on the compatible list in the first post?

    Could also be the quality of the media are the Verbatim discs defiantly genuine?

    If you still have no luck all I can really think to suggest is trying a different discs or possible a different drive to burn with.

    xero399 likes this.
  14. xero399

    xero399 Member

    Joined:
    Sep 16, 2021
    Messages:
    5
    Likes Received:
    1
    Hi, I found my old laptop and it has the TSSTcorp TS-L633J that is on the list. I burned NeverDead again and same problem. This DVDs are verbatim made in Arab Emirates (MKM-003-00). I will try with another brand cause this it's really strange.

  15. xero399

    xero399 Member

    Joined:
    Sep 16, 2021
    Messages:
    5
    Likes Received:
    1
    Good news! I bought this "cheap" HP dvds on Amazon and I burned NeverDead again. Tried to install and works, 100%. I could finish the game. Then I burned Zone of the enders and it installed 100%. Finally I burned Lost Planet 3 and again installed 100%. So seems that the problem were the Verbatim Dvds. Thanks for your help.

    InsaneNutter likes this.
  16. Neoteam1

    Neoteam1 Addict

    Joined:
    Apr 10, 2011
    Messages:
    721
    Likes Received:
    72
    Location:
    United Kingdom
    Are there any external Burners that work?

    As my PC case no longer supports internal drives
