Need help JTAG-ing my Xbox 360 (Xenon)

Discussion in 'Console Help Center' started by ZimHB123, Mar 14, 2013.

  1. ZimHB123

    ZimHB123 Well-Known Member

    Joined:
    Aug 27, 2011
    Messages:
    54
    Likes Received:
    2
    Location:
    Somewhere in the Milky Way

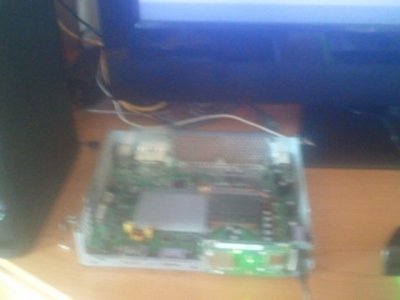

    CYMERA_20130314_094306_zps934978d9.jpg CYMERA_20130314_094254_zpsb040b285.jpg
    The MFR Date is 2005-12-11
    It's JTAG-able isn't that true:P

  2. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,248
    Likes Received:
    3,344
    Location:
    Yorkshire, England
    Yes its an Xenon below 7371, so go for it.

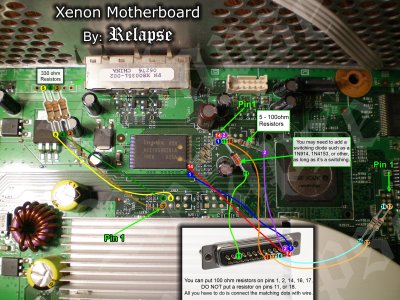

    If you want to jtag it on the cheap buy the stuff in the image below and wire the console up as per the image. Worked great on my launch console, Jtagged for less than £5, presuming you have a PC with a parallel port that can operate in SPP mode. (Usually a very old PC).


    Attached Files:

    ZimHB123 likes this.
  3. ZimHB123

    ZimHB123 Well-Known Member

    Joined:
    Aug 27, 2011
    Messages:
    54
    Likes Received:
    2
    Location:
    Somewhere in the Milky Way
    JTAGDude likes this.
  4. ZimHB123

    ZimHB123 Well-Known Member

    Joined:
    Aug 27, 2011
    Messages:
    54
    Likes Received:
    2
    Location:
    Somewhere in the Milky Way
    Would a USB to DB25 parallel female cable work cause I have a Win7 Laptop :P

  5. ZimHB123

    ZimHB123 Well-Known Member

    Joined:
    Aug 27, 2011
    Messages:
    54
    Likes Received:
    2
    Location:
    Somewhere in the Milky Way
    Hey BTW when JTAGing 360s, do you need to leave the Power cable on the motherboard?

  6. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,248
    Likes Received:
    3,344
    Location:
    Yorkshire, England
    I replied to your PM, however for anyone else reading this yes. Power cable should be in and switched on, however don't actually power the 360 on.

  7. ZimHB123

    ZimHB123 Well-Known Member

    Joined:
    Aug 27, 2011
    Messages:
    54
    Likes Received:
    2
    Location:
    Somewhere in the Milky Way
    My points were OK on my Xenon Rev but my bro's don't work

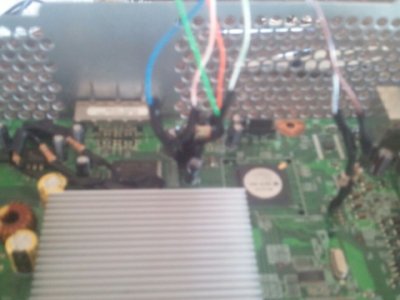

    Here are my Xbox's solder points CYMERA_20130324_171708_zpsfd4575fb.jpg my Xbox works but my bro's don't dump NAND and AutoGG keeps freezing even with my working JTAG but other features like XeBuild still work
