Older Xbox 360 Has Major Problems With Newer Games.

Discussion in 'Console Help Center' started by Rick, Mar 5, 2011.

  1. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    Problem fixed,but not 100% sure yet.

    problem:freezes on gow 3 beta

    Last edited: May 5, 2011
  2. Dark Scyth

    Dark Scyth Moderator

    Joined:
    Mar 3, 2009
    Messages:
    2,594
    Likes Received:
    459
    It almost sounds like a disc drive issue to me. A friend of mine had issues with MW2 on his non hdmi console, oddly enough it was the only game having these issues, even when they were 100% installed to the hard drive. I took the 360 apart, lightly cleaned the laser and he didn't have the issue anymore. Seems odd that it would happen this way but it did seem to resolve the issue.

  3. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    How did you clean the laser?

    I know how to open the xbox and dvd drive btw.

    Just a few minutes ago i got the message disk unreadable after playing for more than 10 minutes.

  4. Dark Scyth

    Dark Scyth Moderator

    Joined:
    Mar 3, 2009
    Messages:
    2,594
    Likes Received:
    459
    A very small amount of Windex a q-tip and then lightly rub the dry side to dry it off, make sure it's dry or else it could just make it worse and very lightly rub the laser as they seem to be pretty fragile.

  5. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    I might try this tomorrow

  6. Dark Scyth

    Dark Scyth Moderator

    Joined:
    Mar 3, 2009
    Messages:
    2,594
    Likes Received:
    459
    There is some type of wax type thing that you can use that would probably work better, I think I seen a video on youtube of what they were using, unfortunately I can't quite remember what it was.

  7. Harcroft

    Harcroft Addict

    Joined:
    Mar 10, 2009
    Messages:
    296
    Likes Received:
    96
    Location:
    Ontario, Canada
    You should never use ANY waxy substance on a laser. Windex is suitable if you don't have any 99% (or higher) pure isopropyl rubbing alcohol on hand. Rubbing alcohol is definitely preferred though.

    Try installing some of those games (1 at a time if need be) to the hard drive on the 360. If when you play the games, you get the same dirty disk error, it's definitely not the laser or dvd drive. It's more likely to be cold solder joints on the GPU, CPU or Ram in that case. But based upon your description, I would agree with Dark Scyth that it is just a dirty, or weak laser.

    First try the cleaning, if that doesn't help you can try tweaking the laser which is about 50/50 on making it work better, or killing it depending partly on your skills with small electronics. You could also try replacing the laser entirely for $20 or less, or the entire drive for $30-40ish if you can't replace the laser.

  8. Dark Scyth

    Dark Scyth Moderator

    Joined:
    Mar 3, 2009
    Messages:
    2,594
    Likes Received:
    459
    It wasn't a wax per-say it was a polisher type substance, couldn't really be more in detail because I don't remember what it was but I can also say Rubbing Alcohol is more then preferred as it does dry way faster.

  9. Harcroft

    Harcroft Addict

    Joined:
    Mar 10, 2009
    Messages:
    296
    Likes Received:
    96
    Location:
    Ontario, Canada
    Any kind of polish will leave a residue on the laser lens, which will distort incoming light and possibly change the focal point. The only reason you would ever want a polish or rebuilding substance (like for car window cracks) on your laser, is if it was scratched. At that point though, it's probably easier to just replace the laser.

  10. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    *

    Last edited: Apr 28, 2011
  11. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
  12. Crazyuk420

    Crazyuk420 Resident

    Joined:
    May 14, 2009
    Messages:
    186
    Likes Received:
    167
    I got a old 360 that had the same symptoms , i used a similar x clamp kit and got a new dvd drive , ive not had a problem with it since
    Just take care when your taking your heat sinks off and dont use too much thermal paste.

    And i had gears freeze on my main console once not sure why
    Also are you playing Red dead on disc or HD

  13. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    its on the hd but it will freeze at random times but not that much as gears of war 3

  14. Dark Scyth

    Dark Scyth Moderator

    Joined:
    Mar 3, 2009
    Messages:
    2,594
    Likes Received:
    459
    When playing the Gears beta, take out the disc before you boot it up and then see if you still have freezing issues If that doesn't work then if you have an extra flash drive or hard drive copy it to one of those devices and try it from there.

  15. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    i will try it on a usb drive

  16. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
    *

    Last edited: May 5, 2011
  17. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix
  18. BigRod989

    BigRod989 Addict

    Joined:
    Oct 11, 2010
    Messages:
    388
    Likes Received:
    88
    Location:
    Tualatin, Oregon, United States
    I do RRoD Repairs all the time I go to Home Depot for the metal washers and screws comes to for me about 5 bucks (but I buy enough to do 3 or 4 at a time) and Frys for the nylon washers I do Total 32 metal washers all 1mm thick and 16 nylon washers all 1mm thick and (about another 5 bucks lol) but the best way I have found to do it is Drill the Metal Case were the screws are and run the new ones through the Holes with 3 metal washers and 1 nylon each screw Total 24 metal and 8 nylon on the bottom side of the board and the CPU/GPU (heatsink side) use 1 nylon with a metal on top in between the heatsink and board, I've found doing it this way last the longest because it won't allow the board as much flex. And with some other peoples repairs I've noticed they do the screws in between the metal case and the board and the systems die fast from over flex

    Rick likes this.
  19. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,283
    Location:
    The Matrix

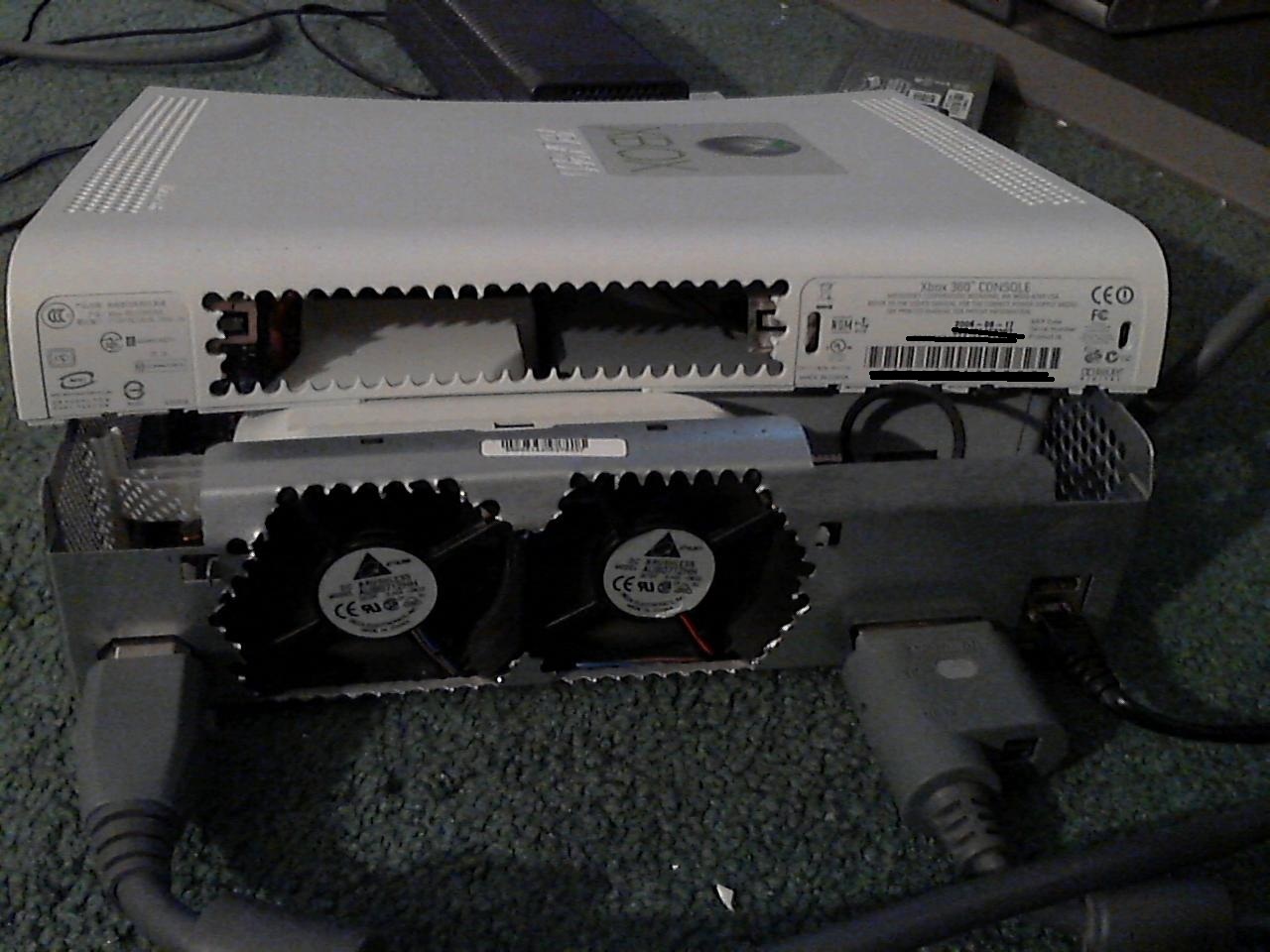

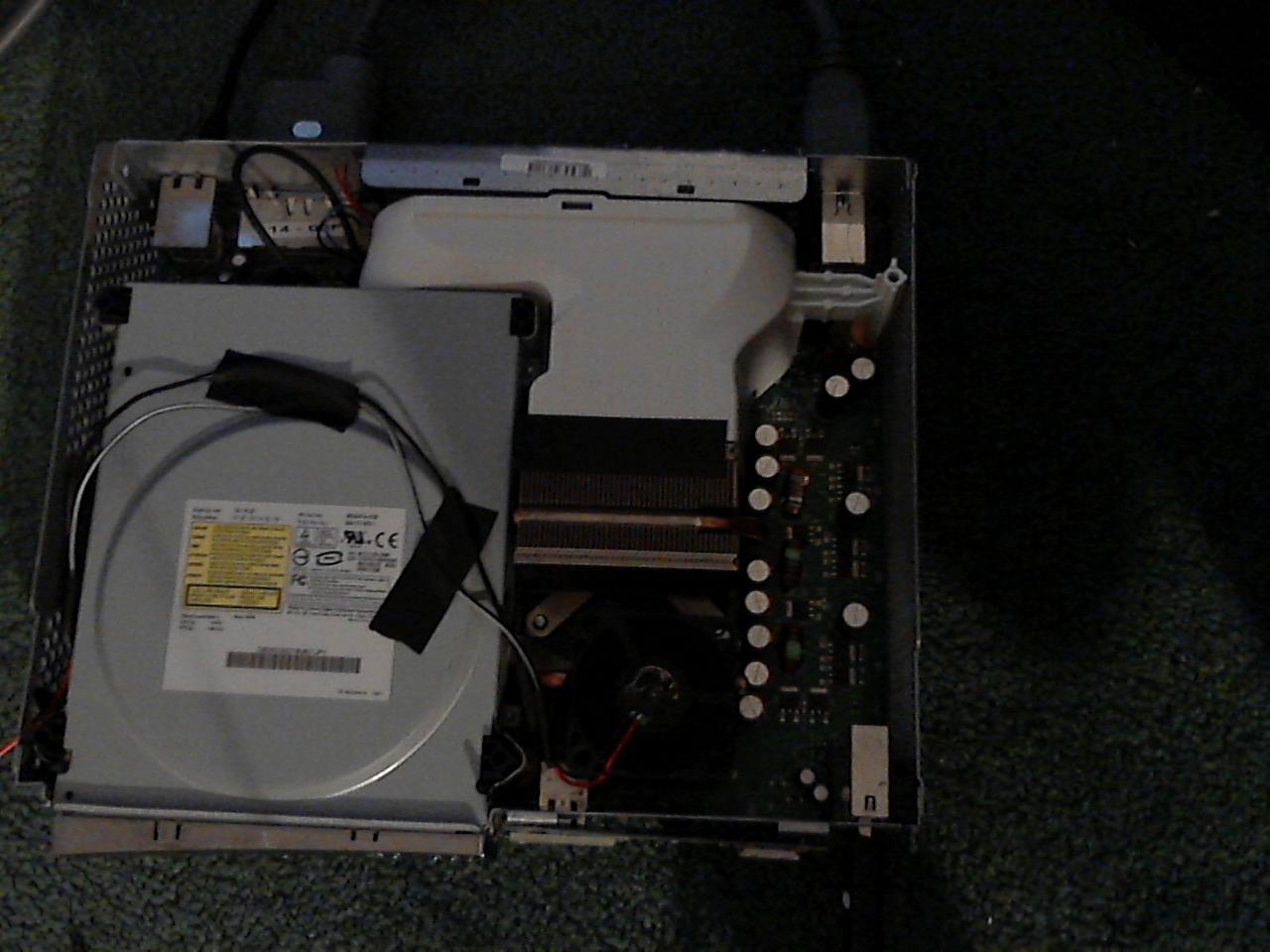

    This seems to work good.I have a fan over the heatsink that bridges to the gpu heatsink.Its wired up to a battery charger.I also cut the back grid.(see images)
    [​IMG]
    [​IMG]


    Attached Files:

    Last edited: May 9, 2011
  20. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    11,686
    Likes Received:
    3,496
    Location:
    Yorkshire, England
    Nice mod there Rick, so the console is working perfectly now?
