Hack a 250gb, 320gb or 500gb Sata harddrive to work in the Xbox 360 and Xbox 360 Slim

Discussion in 'Xbox 360 Guides' started by InsaneNutter, Dec 8, 2009.

  1. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,291
    Location:
    The Matrix
    Usually the original drives for xbox 360 can't be fixed.
    You can try this. I'm not sure if it would work.

  2. Prish

    Prish Member

    Joined:
    Jun 25, 2013
    Messages:
    7
    Likes Received:
    0
    I srsly need some help here:

    Used a WD3200BEKT 320GB - xbox360 slim

    First off: when i use hddhackr (no matter if i use v1.3 or v1.4)
    it doesnt automatically flash AND create partitions.

    First i have to flash and then i have to create the partitions.

    Result: xbox says: capacity: 294GB and free space: 129GB

    please help me to fix this!

  3. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,291
    Location:
    The Matrix
    If you haven't transferred anything you will need to format it.
    With the drive connected to the xbox follow these instructions.

  4. Prish

    Prish Member

    Joined:
    Jun 25, 2013
    Messages:
    7
    Likes Received:
    0
    I already tried it. The progressbar is at 50% all the time and after 20-30 minutes I turned off the xbox. Shall I wait much longer? It seems so stucked :/

  5. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,291
    Location:
    The Matrix
    Undo the drive with hddhackr then follow the instructions here. Data Lifeguard Diagnostic For Western Digital Drives

  6. Prish

    Prish Member

    Joined:
    Jun 25, 2013
    Messages:
    7
    Likes Received:
    0
  7. Prish

    Prish Member

    Joined:
    Jun 25, 2013
    Messages:
    7
    Likes Received:
    0

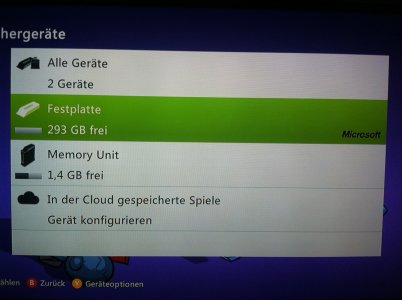

    Thank you! Everything worked fine ;)


    Attached Files:

    • Foto.JPG
      File size:
      262.5 KB
      Views:
      2,087
  8. Peterako

    Peterako New Member

    Joined:
    Jun 28, 2013
    Messages:
    1
    Likes Received:
    0
    Hello,
    I followed the guide to flash my Hitachi 320gb drive with HexWorkshop, and then I sucessfully partitioned using hddhackr, but my xbox still does not recognize that there is a hard drive there. Is my drive simply incompatible? I'm pretty confident that I did everything correct with HexWorkshop, as the LBA size was what it should be just before the partitioning. Any tips?

    Also: Xport360 now recognizes it as an xbox drive, while before the hex edit and partition it did not recognize it. This means that I have successfully done the security sector?

    Last edited: Jun 28, 2013
  9. CampingTomZ

    CampingTomZ New Member

    Joined:
    Jun 25, 2013
    Messages:
    2
    Likes Received:
    0
    hey guys im having an issues with my WD 1200BEVT -00A23T0 drive. i had it "hack" for an xbox before but replaced it with a 320gig drive. now im looking to use it for a xbox again. i keep getting an E68 error on my xbox when i plug the hdd in and boot it up. ive gone through all the steps several times and it keeps giving me that error. i would like to just start over and try it from scratch only problem is i lost the bin file for the dive. the original UNDO for my drive.

    if anyone has the undo for that drive let me know. i tried using he one from the collection but it doesnt help.

    thank you in advance for your help
    -tom

    edit: when i open it up in paragon partition manger it comes up as a FUJITSU MHW2120BH

  10. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,291
    Location:
    The Matrix
    You can try to use this program to recover your undo file.
    Recuva - Undelete, Unerase, File and Disk Recovery - Free Download

  11. CampingTomZ

    CampingTomZ New Member

    Joined:
    Jun 25, 2013
    Messages:
    2
    Likes Received:
    0
    yeah i had tried that with no luck sadly

  12. 33Snips

    33Snips New Member

    Joined:
    Jul 12, 2013
    Messages:
    2
    Likes Received:
    0
    Hi everyone, I just registered so I could post here. I followed the tutorial with a BEKT Scorpio Black 250 with no issues. I put the drive in my xbox 360 with no internet connection, formatted it, and it showed up great. I shut off the console, reconnected everything with Ethernet connected and immediately got a mandatory system update notification. That scarred the hell out of me, so I rejected the update by selecting "no". Then I reconnected my legit drive and the update notification went away. This couldn't have been a coincidence, right? The update had to have been related to the hacked drive. Has anyone else had this experience? I've done a lot of searching on this procedure and everyone seems to think that MS either can't detect it, or they can but don't do anything about it. I don't want a console ban, XBL ban etc. I know, I know, if I don't want a potential ban, don't hack or modify the console/peripherals, but it's really more about curiosity at this point. Has anyone here been banned, or gotten a system update after they installed the hacked drive? Thanks!

  13. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,291
    Location:
    The Matrix
    I'm on the beta dashboard and it works fine. The update will be installed on the hacked drive and it will function like normal.

  14. 33Snips

    33Snips New Member

    Joined:
    Jul 12, 2013
    Messages:
    2
    Likes Received:
    0
    Thanks!

    Thanks for the quick reply Rick! The strange thing is, I didn’t sign up for the beta this year. That’s why I thought something sneaky might be afoot. I did however, sign up the previous two years. I’m going to swap the hacked drive in and see if it happens again. I can’t find an instance anywhere on the internet of anyone else getting an update after installing the hacked drive, or getting banned. I guess I’m special :). Or paranoid :S.

  15. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,291
    Location:
    The Matrix
    When I hacked my drive some years ago it prompted for an update. Microsoft doesn't ban for these drives.

  16. Cravit8

    Cravit8 Member

    Joined:
    Aug 18, 2011
    Messages:
    13
    Likes Received:
    0
    Location:
    Fl
    Yep, you're being over paranoid, I understand the concern though.
    i played for 2 years on a hacked drive, even formatted and re-hacked it once the 320Gb file came out in September 2011. You are fine, M$ has bigger fish to fry than a guy with a big hard drive. I ran all the updates and Beta metro.

  17. famibica

    famibica New Member

    Joined:
    Jul 15, 2013
    Messages:
    4
    Likes Received:
    0
    Guys, ive got an ps3 and a xbox360, im gonna buy a 1tb hd or 750gb for my ps3 and im gonna try to use the one on ps3 at the xbox360(its a 320gb one).

    The big question is, it must be a western digital? because ive saw plenty xbox 360 slim comming with samsung or hitachi drivers.

    And my ps3 was an hitachi travelstar z5k320, i want to know if i can make this work, if i must install any .bin from any of the files(one of the 320gb at this post on slim) or something like that.
    Anyone did something like that?

    The hitachi specific info:
    [TABLE="width: 100%"]
    [TR]
    [TD="colspan: 2"][FONT=Arial, Helvetica, sans-serif]Product Identifiers[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Brand[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]Hitachi[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Model[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]Travelstar Z5K320 HTS543232A7A384[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][/TD]
    [TD="width: 65%"][/TD]
    [/TR]
    [TR]
    [TD="colspan: 2"][/TD]
    [/TR]
    [TR]
    [TD="colspan: 2"][FONT=Arial, Helvetica, sans-serif]Key Features[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Enclosure[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]Internal[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Capacity[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]320 GB[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Buffer Size[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]8 MB[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Hard Drive Type[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]HDD (Hard Disk Drive)[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Spindle Speed[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]5400 RPM[/FONT][/TD]
    [/TR]
    [TR]
    [TD="width: 35%"][FONT=Arial, Helvetica, sans-serif]Designation[/FONT][/TD]
    [TD="width: 65%"][FONT=Arial, Helvetica, sans-serif]Laptop Computer[/FONT][/TD]
    [/TR]
    [/TABLE]

    Thanks for any help and patience.
    Famibica

  18. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,370
    Likes Received:
    3,762
    Location:
    Yorkshire, England
    Indeed, been using my hacked drive almost 4 years now. No problems what so ever.


    Yes it must be western digital as that is the only brand of hard drive Hddhackr supports.

  19. famibica

    famibica New Member

    Joined:
    Jul 15, 2013
    Messages:
    4
    Likes Received:
    0
    hm,thanks for your answer.

    A friend said he just put an hd he had, he ven used hddhacker he just put the hd in, got the system on a pendrive and then the xbox said that was no system there and he simply installed the system from pendrive without using hddhacker, is that possible?

  20. IS06DMX

    IS06DMX New Member

    Joined:
    Jul 17, 2013
    Messages:
    1
    Likes Received:
    0
    Hello:) I bought WD 250GB BPVT.

    I had 2 problems..

    1. No ATA Device found:
    Fix: Just go where it says ( BIOS ) SATA Options and look for IDE-> AHCI and enable NATIVE IDE.
    2. HDDSS.BIN not found:
    Fix: When the tutorial says to rename "HDDSS_250GB.BIN or HDDSS_320GB.BIN" just write HDDSS , because if you write HDDSS.BIN , Windows will add automatically .BIN so the result is HDDSS.BIN.BIN = By Windows.

    Good Luck Guys :)

    Hope I'll help someone:D It's really quick to mod, less than 5 minutes.
