Hack a 250gb, 320gb or 500gb Sata harddrive to work in the Xbox 360 and Xbox 360 Slim

Discussion in 'Xbox 360 Guides' started by InsaneNutter, Dec 8, 2009.

  1. robide

    robide Member

    Joined:
    Sep 23, 2011
    Messages:
    6
    Likes Received:
    1
    I flashed my WD3200BEVT yesterday. As advised by gangadhartnl i used HDDHACKR 1.22. But i had an error occured at the end "bad or wrong....". So i flashed my HDD with the undo.BIN. I changed my HDDSS.BIN and used HDDHACKR v1.30. I works and i created partitions 1/2/3.

    Now i have a new HDD in my XBOX 360 with 293go of free space. This amount of space is normal? Everybody who flashed his HDD has 293go left after flashing? Not 299go?

  2. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,307
    Likes Received:
    3,735
    Location:
    Yorkshire, England
    Yes that's normal, you will never actually have 320gb of usable space on a 320gb drive.
    The Xbox 360 has various partitions, taking the total free space down you can use for storage to 293gb.

  3. Dmitri Kalinaitsev

    Dmitri Kalinaitsev New Member

    Joined:
    Sep 30, 2011
    Messages:
    2
    Likes Received:
    0
    Got a problem!

    My usb got a malfunction so i lost the UNDO.BIN :(((

    I flashed to a 320, it showed as 293, i installed a game to it... then when i turned off turned on the Xbox didnt load. Only later i came to realize that loading was increased to a few minutes not normal seconds. Anyways reflashed the drive to 250, 302, 250 etc. etc. Anyways xbx sees the drive as unformatted, i press format but it stays unformatted after.

    What can i do? also on hddhackr 1.30 says created partitions successfully but it never gives me the sign to turn of pc, halts there, 1.25 works ok for this. :S

    Also it now sees my drive as hitachi for some reason XD when its a 3200BEVT WD

  4. Dmitri Kalinaitsev

    Dmitri Kalinaitsev New Member

    Joined:
    Sep 30, 2011
    Messages:
    2
    Likes Received:
    0
    Never mind i restored to a different WD Undo.bin than my drive missed 1 letter, in the name... now i guess its bricked and gone right?

  5. RaptorHunter

    RaptorHunter New Member

    Joined:
    Oct 2, 2011
    Messages:
    2
    Likes Received:
    0

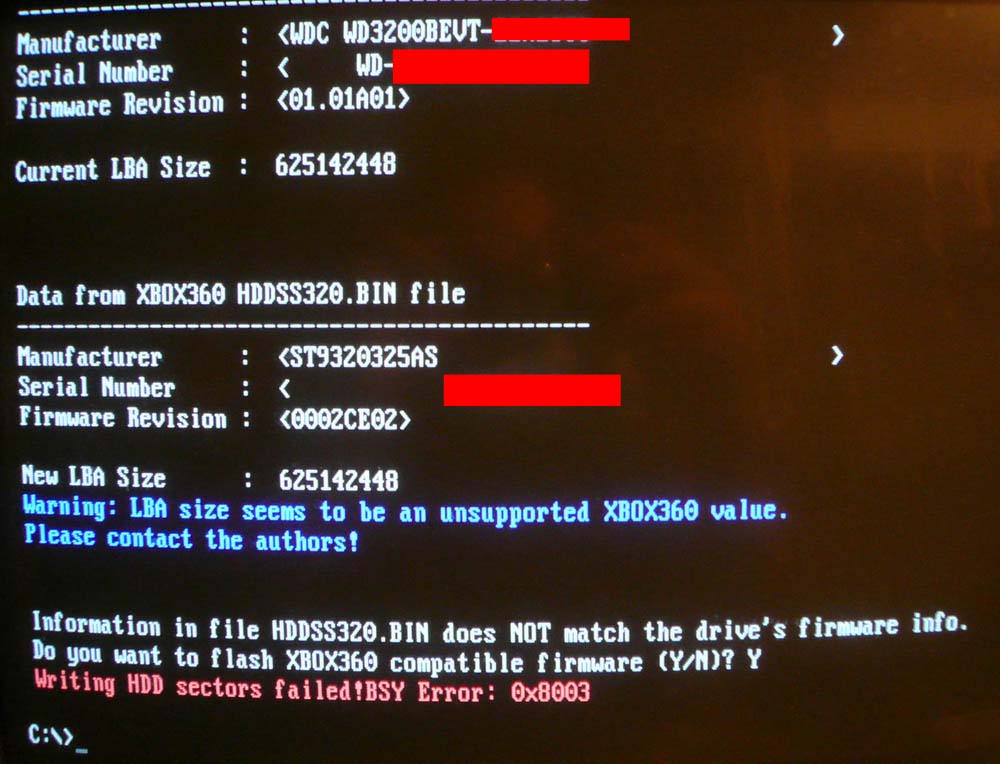

    I'm trying to hack my new 320 GB WD3200BEVT Drive

    When I try I get this error that: the "LBA size in unsupported" even though the .bin lba matches the drive lba

    I tried to go ahead anyway and it failed.

    See Screenshot: http://i.imgur.com/xYVEu.jpg

    Now when I try again I get the "Reading sector 16 failed"

    What am I doing wrong?



    Attached Files:

  6. edlimym

    edlimym Member

    Joined:
    Sep 24, 2011
    Messages:
    6
    Likes Received:
    0
    i managed to flashed both my BEVT and BPVT. both having the same 'so called' error message but i went ahead and flashed them. flashed successful. i amusing hddhackr ver 1.30 and via 6421a pci card.

  7. billyjimbob243

    billyjimbob243 New Member

    Joined:
    Oct 3, 2011
    Messages:
    2
    Likes Received:
    0
    So when im using the usb tool, where is the usb boot drive files folder supposed to be located at?

  8. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,289
    Location:
    The Matrix
    look below

  9. legndkilla8

    legndkilla8 New Member

    Joined:
    Oct 3, 2011
    Messages:
    1
    Likes Received:
    0
    Just talked to M$

    Me: Hello, I just have a quick question. If I was to use a 3rd party HDD in my xbox 360/360S or was to use software and format one to work would I get banned from XBL? M$s prices are a little steep for a HDD.
    Kristina: I can certainly understand wanting to shop for the best deal, I love getting bargains myself. However, for best performance, I would suggest going with a 1st party hard drive. Ultimately, it is up to you. The hard drive will not cause you to be banned from Xbox Live, but there could be unforeseen issues.
    Me: Thank you for you help


    So as you can see M$ support says you won't get banned.

  10. n3mur1t0r

    n3mur1t0r New Member

    Joined:
    Oct 3, 2011
    Messages:
    3
    Likes Received:
    0
    Hey there, just used this tutorial to hack a WD3200BPVT with the HDDSS320.bin and HDDHackr v1.30, worked like a charm, so thanks a lot InsaneNutter. I was just wondering, is there any chance that I may use my old 20GB Hitachi HTS541640J9SA00 x360 HDD in a PC? Is there any way to format it to FAT32 or NTFS?

  11. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,289
    Location:
    The Matrix
    yes.just connect via sata or sata to usb and use disk management to format it (this will probably render the drive unusable on any xbox 360 console)

    n3mur1t0r likes this.
  12. n3mur1t0r

    n3mur1t0r New Member

    Joined:
    Oct 3, 2011
    Messages:
    3
    Likes Received:
    0
    Great, 10x!

  13. RaptorHunter

    RaptorHunter New Member

    Joined:
    Oct 2, 2011
    Messages:
    2
    Likes Received:
    0

    I found a third computer and it worked like a charm.

    The guide should mention the fact that if you BIOS doesn't give you the option to change AHCI to IDE then it probably won't work...

  14. billyjimbob243

    billyjimbob243 New Member

    Joined:
    Oct 3, 2011
    Messages:
    2
    Likes Received:
    0
    I mean i don't have that choice... a window show up where i have to go save the file too. Or to re-word my question: Where on my computer is the "usb drive boot files\ ms-dos" folder located at on my computer? It's not on the jump drive so i have no clue where it could be...

  15. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,289
    Location:
    The Matrix
    this is my location of the files extracted yours should be with the .exe of the usb program
    [​IMG]

  16. Specter

    Specter Elite Member

    Joined:
    Sep 23, 2011
    Messages:
    66
    Likes Received:
    3
    Location:
    USG Ishimura
    very nice guide

    > can i connect the SATA hard drive directly to the console? because i dont have xbox360 hdd

  17. Rick

    Rick Moderator

    Joined:
    Jul 14, 2010
    Messages:
    2,853
    Likes Received:
    1,289
    Location:
    The Matrix
    for xbox 360 slim yes for the xbox 360 white console you need this (it will work on all hard drives)

    Specter likes this.
  18. Specter

    Specter Elite Member

    Joined:
    Sep 23, 2011
    Messages:
    66
    Likes Received:
    3
    Location:
    USG Ishimura
    thx buddy, i didnt expect they sell hdd shells.

    so i get one and load it with a laptop hard drive of any capacity! looks good

  19. seanpr92

    seanpr92 Godlike

    Joined:
    Oct 12, 2010
    Messages:
    1,159
    Likes Received:
    195
    Location:
    Nottingham, United Kingdom
    id advise you get slim hdd shell thou as sata connector can become loose as its not correcty fitted

  20. Specter

    Specter Elite Member

    Joined:
    Sep 23, 2011
    Messages:
    66
    Likes Received:
    3
    Location:
    USG Ishimura
    i'll take ur advice is consideration, thx :)
