Xbox 360 Jtag or RGH Hack Easy Update to Dashboard 17502 with XeBuild GUI

Discussion in 'Xbox 360 Guides' started by InsaneNutter, Aug 19, 2013.

  1. Leon978

    Leon978 Member

    Joined:
    Mar 30, 2021
    Messages:
    11
    Likes Received:
    1
    Hmm, I didn't think about that possibility, might as well take that into consideration when I buy the Kinect, maybe a new one from stores isn't updated. Anyway, thanks a lot for answering all my questions, you've been of great help!!!

  2. Leon978

    Leon978 Member

    Joined:
    Mar 30, 2021
    Messages:
    11
    Likes Received:
    1
    Hello again, today I finally got to try and update the Xbox 360, but I got two situations, the first when I tried to launch Xell i couldn't do it, either by pressing the eject button or going in the file manager on Freestyle 3, I tried to Download only the xell from this link: https://digiex.net/threads/xell-lau...pport-and-a-quickboot-shortcut-download.9158/ , without the demos shortcut but i couldn't launch xell using this one as well. The other situation is when I tried to dump the NAND this error appeared very fast on the screen No Nand Found Error.jpg
    After this the screen went to the normal state when you launch the NAND flasher but with an error message: Error occurred.jpg
    I got some info on the dashlaunch, maybe it will help to know what's going on: Info on the Board.jpg
    Please help me solve these issues!!

  3. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    You have a Corona revision of the 360 which is quite new compared to the older revisions of the 360, Nand Flasher 360 doesn't appear to support these consoles. However if you can get in to Xell, you can still dump your nand.

    I suspect Xell is actually running when you power the console on with the eject button? i presume you are just getting a blank screen? if so and you have a network cable connected your router should give the Xbox 360 an IP address, so you can access the console via a web browser using this ip address (for example http://192.168.1.111) to obtain the CPU key, and so on.

  4. Leon978

    Leon978 Member

    Joined:
    Mar 30, 2021
    Messages:
    11
    Likes Received:
    1
    How can I know if the console is running the Xell ? I never saw the Xell screen before and never used it. I connected the VGA cable like you said in the tutorial for the first time in the console to see if I could see the Xell screen but nothing happened. Is there some configuration to get Xell running, like a specific place to put it in the Xbox 360 storage devices ? My Xbox 360 is connected via WiFi in the network, does that work too or do I have to get a cable to do what you mentioned ?

  5. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    You need to be connected via Ethernet, WiFi won't work.

  6. Asjad

    Asjad Member

    Joined:
    Apr 21, 2022
    Messages:
    14
    Likes Received:
    1
    bro i did thus but now my cosole has red light on xbox button and cant work , is it red ring of death?

  7. Asjad

    Asjad Member

    Joined:
    Apr 21, 2022
    Messages:
    14
    Likes Received:
    1
    bro i got red light after restarting my console what should i do? the error code is 1013

    Last edited: Apr 29, 2022
  8. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Can you load Xell if you power the 360 on with the eject button?

  9. Asjad

    Asjad Member

    Joined:
    Apr 21, 2022
    Messages:
    14
    Likes Received:
    1
    Y
    Yes i can, and just wanted to tell that I have to old nand which I dumped into my usb and saved on my computer

  10. Asjad

    Asjad Member

    Joined:
    Apr 21, 2022
    Messages:
    14
    Likes Received:
    1
    I am in big trouble or can I get through this problem ?cuz I don’t think that there is some problem with my hardware it was running just fine and I always maintained my xbox and never like opened it myself, I just used to add games from online after jailbreaking it 1 year back , now I was trying to update it by ur method but this problem appeared and as soon as I write the new nand on Xbox and shutter it down, when I turned it on again this the error, I would really appreciate ur help I u can get me through this and just get my Xbox back to where it was and there are not of a lot technical experts in my city, I would really like ur help

  11. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    As you can access Xell you should be able to put the old working nand on a USB drive like you did to update and restore that to the 360. It should at least work as before then.

  12. Asjad

    Asjad Member

    Joined:
    Apr 21, 2022
    Messages:
    14
    Likes Received:
    1
    yh i did that thank u so much i really appreciate ur help.

    InsaneNutter likes this.
  13. alanhuro

    alanhuro New Member

    Joined:
    Sep 28, 2022
    Messages:
    1
    Likes Received:
    1
    I could not get the Kinect to update for my Jtag Xbox 360. I followed the direction from the top of this thread. Everything went smoothly. However, when I get to the step "How do I restore the avatar and kinetic data so i can use my kinect?. I copied the $SystemUpdate to USB root and does not matter what I tried it does take an update and keep getting an pop up an update message per instruction. Here are the steps that I tried.

    1. copy to both folders $SystemUpdate and $$SystemUpdate to a root folder of USB formatted to FAT32
    2. Reboot system couple times. Everytime it recovers it pop up a message "A system update is required...."
    3. I checked a storage option and I able to see the USB drive with the correct memory size
    4. I finally run dashlaunch and from behavior I change the Noupdate to disable. After console restart the update start to pop up. If you can not get it to work check the NoUpdate make sure it set to disable. I have to do it multiple to get this setting to save. I'm still unsure how to get it to save.

    I hope that help if you can not get it to take an update.

    InsaneNutter likes this.
  14. Tyson863

    Tyson863 Member

    Joined:
    Sep 29, 2023
    Messages:
    6
    Likes Received:
    0
    Hi Insane! When I use the nand flasher for the 360 my nand flasher has not found any nand for me to dump on my USB stick, what should I do?
    My console is RGH btw

  15. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
  16. Tyson863

    Tyson863 Member

    Joined:
    Sep 29, 2023
    Messages:
    6
    Likes Received:
    0

    Attached Files:

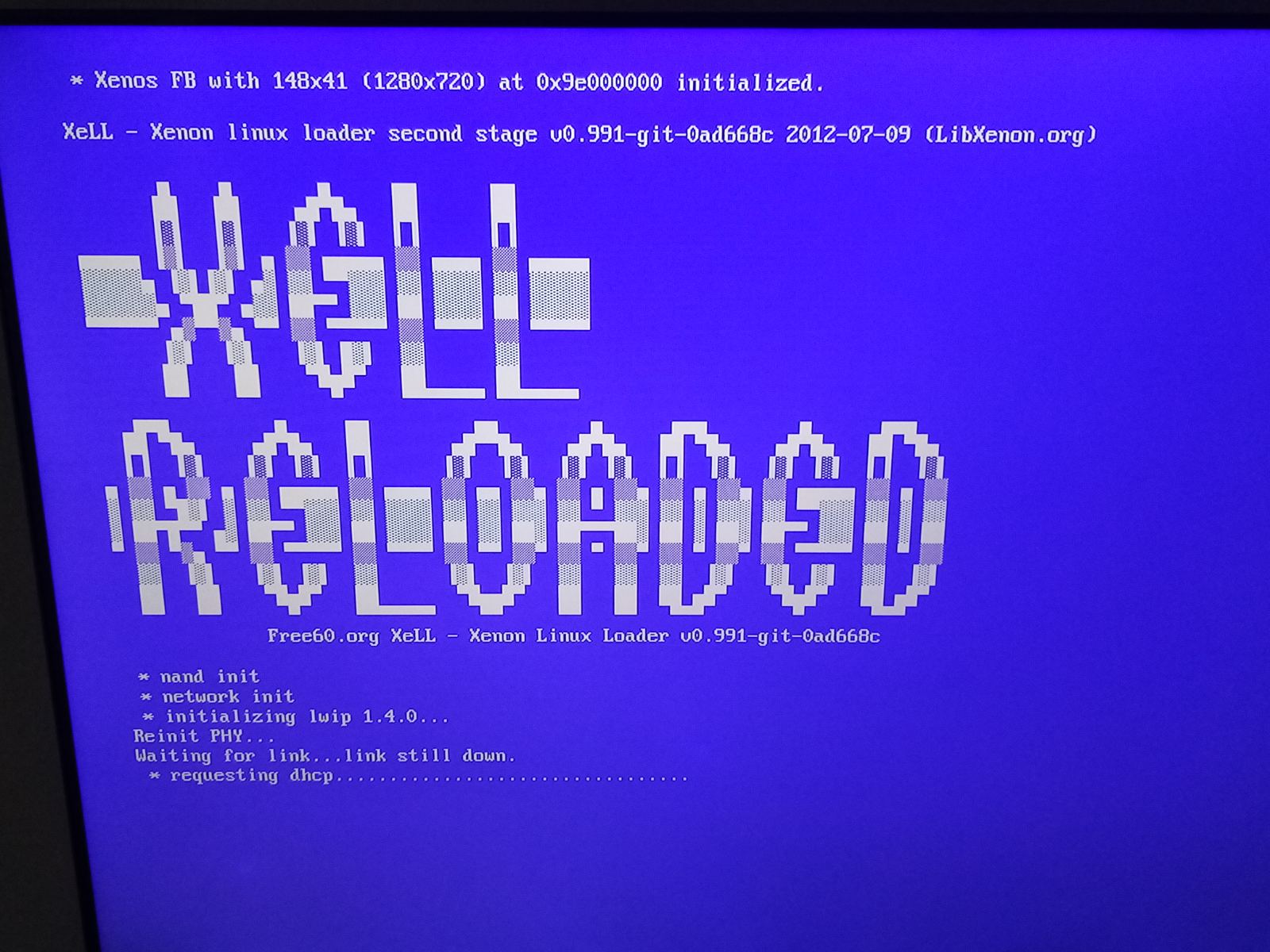

  17. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    You need to connect the 360 to your router with a network cable.

  18. Tyson863

    Tyson863 Member

    Joined:
    Sep 29, 2023
    Messages:
    6
    Likes Received:
    0
    it was already conneted to my router

  19. InsaneNutter

    InsaneNutter Resident Nutter Staff Member

    Joined:
    Jun 1, 2007
    Messages:
    12,400
    Likes Received:
    3,777
    Location:
    Yorkshire, England
    Its not getting an IP address, so you either have a problem with the network cable you are using, or the ethernet port on your 360 / router.
